AD8682:Dual Low Power, High Speed JFET Operational Amplifier

AD8682: Dual Low Power, High Speed JFET Operational Amplifier

The AD8682 and AD8684 are dual and quad low power, precision (1 mV) JFET amplifiers featuring excellent speed at low supply currents. The slew rate is typically 9 V/μs with a supply current under 250 μA per amplifier. These unity-gain stable amplifiers have a typical gain bandwidth of 3.5 MHz. The JFET input stage ensures bias current is typically a few picoamps and below 125 pA maximum over the full temperature operating range.The devices are ideal for portable, low power applications, especially with high source impedance. The devices are unity gain stable and can drive higher capacity loads (G = 1, noninverting), as an example of their excellent dynamic response over a wide range of conditions, delivering dc precision performance at low quiescent currents.

技术指标

-3dB Bandwidth: 3.5MHz
Slew Rate: 9V/us
Vos: 350uV
Ib: 6pA
# OpAmps per Pkg: 2
Input Noise (nV/rtHz): 36nV/rtHz
Vcc-Vee: 9V to 32V
Isy per Amplifier: 250uA
Packages: SOIC,SOP

特点

Low supply current: 250 μA/amp maximum
High slew rate: 9 V/μs
Bandwidth: 3.5 MHz typical
Low offset voltage: 1 mV maximum @ 25°C
Low input bias current: 20 pA maximum @ 25°C
CMRR: 90 dB typical
Fast settling time
Unity gain stable

应用领域

Portable telecommunications
Low power industrial and instrumentation
Loop filters
Active and precision filters
Integrators
Strain gauge amplifiers
Portable medical instrumentation
Supply current monitoring

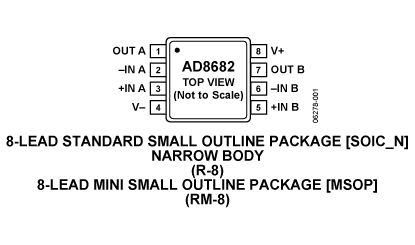

功能框图

订购指南

产品型号	封装	引脚	温度范围	包装和数量	报价*(100-499)	报价*1000 pcs	RoHS
AD8682ARMZ 产品状态: 量产	8 ld MSOP	8	工业	Tube, 50	$ 2.09	$ 1.66	Y 材料信息
AD8682ARMZ-REEL 产品状态: 量产	8 ld MSOP	8	工业	Reel, 3000	$ 2.09	$ 1.66	Y 材料信息
AD8682ARZ 产品状态: 量产	8 ld SOIC	8	工业	Tube, 98	$ 2.09	$ 1.66	Y 材料信息
AD8682ARZ-REEL 产品状态: 量产	8 ld SOIC	8	工业	Reel, 2500	-	$ 1.66	Y 材料信息
AD8682ARZ-REEL7 产品状态: 量产	8 ld SOIC	8	工业	Reel, 1000	-	$ 1.66	Y 材料信息
