ADM825: Supervisory Circuit with Watchdog and Manual Reset in 5-Lead SC70 and SOT-23
The ADM823/ADM824/ADM825 are supervisory circuits that monitor power supply voltage levels and code execution integrity in microprocessor-based systems. In addition to providing power-on reset signals, an on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. A reset signal can also be asserted by an external push-button, through a manual reset input. The three parts feature different combinations of watchdog input, manual reset input, and output stage configuration, as shown in Table 1.
These parts are available in a choice of seven reset threshold options ranging from 2.19 V to 4.63 V. The reset and watchdog timeout periods are fixed at 140 ms (minimum) and 1.6 sec (typical), respectively.

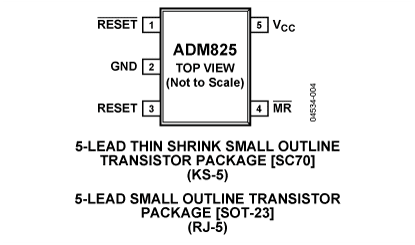

The ADM823/ADM824/ADM825 are available in 5-lead SC70 and SOT-23 packages and typically consume only 5 μA, making them suitable for use in low power, portable applications.
产品应用领域 Applications
- Microprocessor systems
- Computers
- Controllers
- Intelligent instruments
- Portable equipment
ADM825 特点
- Precision 2.5 V to 5 V power supply monitor
- 7 reset threshold options: 2.19 V to 4.63 V
- 140 ms (minimum) reset timeout
- Manual reset input (ADM823, ADM825)
- Push-pull output stages
RESET (ADM823)
RESET, RESET (ADM824/ADM825) - Watchdog timer with 1.6 sec timeout (ADM823, ADM824)
- Low power consumption (5 μA)
- See Data Sheet for Additional Information
ADM825 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADM825LYKS-R7 | 量产 | 5 ld SC70 | 5 | 工业 |
| ADM825LYRJ-R7 | 量产 | 5 ld SOT-23 | 5 | 工业 |
| ADM825LYRJZ-R7 | 量产 | 5 ld SOT-23 | 5 | 工业 |
| ADM825MYKS-R7 | 量产 | 5 ld SC70 | 5 | 工业 |
| ADM825MYRJ-R7 | 量产 | 5 ld SOT-23 | 5 | 工业 |
| ADM825RYKS-R7 | 量产 | 5 ld SC70 | 5 | 工业 |
| ADM825RYRJ-R7 | 量产 | 5 ld SOT-23 | 5 | 工业 |
| ADM825RYRJZ-R7 | 量产 | 5 | 工业 | |
| ADM825SYKSZ-R7 | 量产 | 5 ld SC70 | 5 | 工业 |
| ADM825SYRJ-R7 | 量产 | 5 ld SOT-23 | 5 | 工业 |
| ADM825SYRJZ-R7 | 量产 | 5 ld SOT-23 | 5 | 工业 |
| ADM825TYKSZ-R7 | 量产 | 5 ld SC70 | 5 | 工业 |
| ADM825TYRJ-R7 | 量产 | 5 ld SOT-23 | 5 | 工业 |
| ADM825TYRJZ-R7 | 量产 | 5 ld SOT-23 | 5 | 工业 |
| ADM825YYKS-R7 | 量产 | 5 ld SC70 | 5 | 工业 |
| ADM825ZYKSZ-R7 | 量产 | 5 ld SC70 | 5 | 工业 |
