AD96687 超高速的ECL单比较

The AD96685 and AD96687 are ultrafast voltage comparators. The AD96685 is a single comparator with 2.5 ns propagation delay; the AD96687 is an equally fast dual comparator. Both devices feature 50 ps propagation delay dispersion which is a particularly important characteristic of high speed comparators. It is a measure of the difference in propagation delay under differing overdrive conditions.

A fast, high precision differential input stage permits consistent propagation delay with a wide variety of signals in the common-mode range from -2.5 V to +5 V. Outputs are complementary digital signals fully compatible with ECL 10 K and 10 KH logicfamilies. The outputs provide sufficient drive current to directly drive transmission lines terminated in 50 Ohm to -2 V. A level sensitive latch input is included which permits tracking, track-hold, or sample-hold modes of operation.

The AD96685 and AD96687 are available in both industrial, -25°C to +85°C, and military temperature ranges. Industrial range devices are available in 16-pin DIP, SOIC, and 20-lead PLCC; additionally, the AD96685 is available in a 10-pin, TO-100 metal can.

AD96687 特点

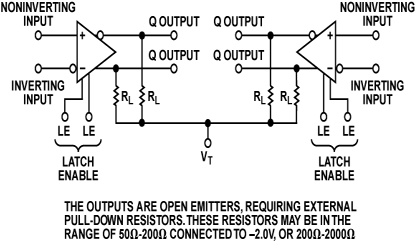

AD96687 功能框图

Functional Block Diagram for AD96687

AD96687 技术指标
Logic Output Diff/ECL Voltage Supply (V) 5, -5.2
# Per Pkg 2 Package 16-Lead DIP,16-Lead SOIC,20-Lead PLCC
Prop Delay (ns)typ 6ns Latch Enable Pin X
AD96687 订购指南
产品型号 产品状态 封装 引脚 温度范围
AD96687BP 量产 20 ld PLCC 20 工业
AD96687BP-REEL 量产 20 ld PLCC 20 工业
AD96687BPZ 量产 20 ld PLCC 20 工业
AD96687BPZ-REEL 量产 20 ld PLCC 20 工业
AD96687BQ 量产 16 ld CerDIP 16 工业
AD96687BR 量产 16 ld SOIC 16 工业
AD96687BR-REEL 量产 16 ld SOIC 16 工业
AD96687BRZ 量产 16 ld SOIC 16 工业
AD96687BRZ-REEL 量产 16 ld SOIC 16 工业
