AD8387: High Performance 12-Bit, 12-Channel Output, Decimating LCD DecDriver(R)

The AD8387 DecDriver provides a fast, 12 bit, latched, decimating dual digital input, which drives twelve high voltage outputs. Twelve-bit input words are loaded into twelve separate high speed, bipolar DACs sequentially. Flexible digital input format allows more than one AD8387 to be used in parallel for higher resolution displays. The output signal can be adjusted for dc reference, signal inversion, and contrast for maximum flexibility.

The AD8387 dissipates TBD W nominal static power. The AD8387 is offered in an 80-lead TQFP E-pad package and operates over the commercial temperature range of 0°C to +85°C.

AD8387 特点

• High accuracy, high resolution voltage outputs
  12 bit input resolution
  Laser trimmed outputs
• Fast settling, high voltage drive
  35 ns settling time to 0.25% into 150pF load
  Slew rate 420 V/us
  Outputs to within 1.3V of supply rails
• High update rates
  Fast, 120 MHz clock
  Programmable video reference (brightness), offset and full-scale (contrast) output levels
• Flexible logic
  INV bit reverses polarity of video signal
  R/L reverses loading order of data
  ISW selects frame/row or column inversion
  DSW selects single or dual data bus mode
• Output short circuit protection
• 3.3V logic, TBD, -18V analog supplies
• Available in an 80-lead 12 mm x 12 mm TQFP E-pad

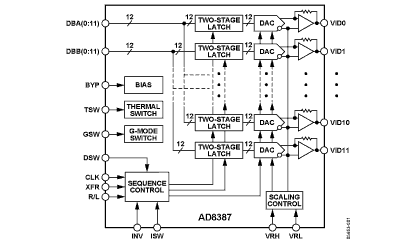

AD8387 功能框图
