AD75019: The AD75019 Contains 256 Analog Switches in a 16 x 16 Array
The AD75019 contains 256 analog switches in a 16 x 16 array. Any of the X or Y pins may serve as an input or an output. Any or all of the X terminals may be programmed to connect to any or all of the Y terminals.
AD75019 特点
- 256 Switches in a 16 x 16 Array
- Wide Signal Range: to Supply Rails of 24 V or ±12 V
- Low On-Resistance: 200 Ω Typ
- TTL/CMOS/Microprocessor-Compatible Control Lines
- Serial Input Simplifies Interface
- Serial Output Allows Cascading for More Channels
- Low Power Consumption: 2 mW Quiescent
- Compact 44-Lead PLCC

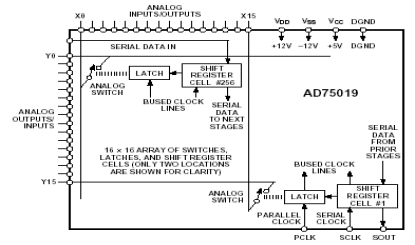

AD75019功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD75019JP | 量产 | 44 ld PLCC | 44 | 商业 |
| AD75019JPZ | 量产 | 44 ld PLCC | 44 | 商业 |
| AD75019JPZ-REEL | 量产 | 44 ld PLCC | 44 | 商业 |
