AD534S: Aerospace Internally Trimmed Precision IC Multiplier

The AD534 is a monolithic laser trimmed four-quadrant multiplier divider having accuracy specifications previously found only in expensive hybrid or modular products. A maximum multiplication error of ±0.25% is guaranteed for the AD534L without any external trimming. Excellent supply rejection, low temperature coefficients and long term stability of the on-chip thin film resistors and buried Zener reference preserve accuracy even under adverse conditions of use. It is the first multiplier to offer fully differential, high impedance operation on all inputs, including the Z-input, a feature which greatly increases its flex-NC ibility and ease of use. The scale factor is pretrimmed to the standard value of 10.00 V; by means of an external resistor, this can be reduced to values as low as 3 V.

The wide spectrum of applications and the availability of several grades commend this multiplier as the first choice for all new designs. The AD534J (±1% max error), AD534K (±0.5% max) and AD534L (±0.25% max) are specified for operation over the 0°C to +70°C temperature range. The AD534S (±1% max) and AD534T (±0.5% max) are specified over the extended ture range, -55°C to +125°C. All grades are available in metically sealed TO-100 metal cans and TO-116 ceramic DIP packages. AD534J, K, S and T chips are also available.

AD534S 特点

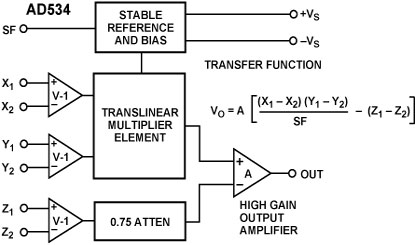

AD534S 功能框图

AD534S 芯片订购指南
产品型号 产品状态 封装 引脚 温度范围
5962-9053701VCA 量产 S/B OR B/B CERAMIC DIP 14 军用
5962-9053701VIA 量产 ROUND HEADER/METAL CAN 10 军用
AD5340000C 量产 CHIPS OR DIE - 军用
