REF43 +2.5V Low Power Precision Voltage Reference

REF43: +2.5V Low Power Precision Voltage Reference

The REF43 is a low-power precision reference providing a stable +2.5V output independent of variations in supply voltage, load conditions or ambient temperature. It is suitable as a reference level for 8, 10 and 12-bit data acuisition systems, or wherever a stable, know voltage is required.

Tight output tolerances and low thermal drift are assured by zener-zap trimming of both outout voltage and its temperature coefficient. A unique curvature correction circuit reduces the thermal curvature which is characteristic of many previous bandgap references.

REF43 特点

+2.5 Volt Output: ±0.05% Max
Low Temperature Coefficient: 10 ppm/°C Max
Excellent Regulation
Load Regulation: 20 ppm/mA Max
Line Regulation: 2 ppm/V Max
Supply Current: 450uA Max
Temperature Voltage Output: +1.9mV/°C
Operating Voltage Range: +4.5V to +40V
Extended Industrial Temp Range: -40°C to +85°C
Available in Die Form

REF43 功能框图

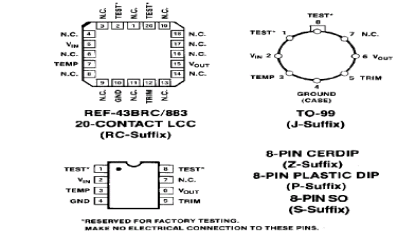

REF43 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
REF43FZ	量产	8 ld CerDIP	8	工业
REF43GP	量产	8 ld PDIP	8	工业
REF43GPZ	量产	8 ld PDIP	8	工业
REF43GS	量产	8 ld SOIC	8	工业
REF43GS-REEL	量产	8 ld SOIC	8	工业
REF43GS-REEL7	量产	8 ld SOIC	8	工业
REF43GSZ	量产	8 ld SOIC	8	工业
REF43GSZ-REEL	量产	8 ld SOIC	8	工业
REF43GSZ-REEL7	量产	8 ld SOIC	8	工业
