OP471: High Speed, Low Noise Quad Operational Amplifier
The OP-471 is a monolithic quad op amp featuring low-noise, 11nV/(root)Hz Max at 1kHz, excellent speed, 8V/us typical, a gain-bandwidth of 6.5MHz, and unity-gain stability.
The OP-471 has an input offset voltage under 0.8mV and an input offset voltage drift below 4uV/°C. guaranteed over the full military temperature range. Open loop gain of the OP-471 is over 500,000 into a 10k Ohm load insuring outstanding gain accuracy and linearity. The input bias current is under 25nA limiting errors due to signal source resistance. The OP-471's CMR of over 105dB and PSRR of under 5.6uV/V significantly reduce errors caused by ground noise and power supply fluctuations.
The OP-471 offers excellent amplifier matching which is important for applications such as multiple gain blocks, low-noise instrumentation amplifiers, quad buffers and low-noise active filters.
The OP-471 conforms to the industry standard 14-pin DIP pinout. It is pin compatible with the OP-11, LM 148/149, HA4741, RM4156, MC33074, TL084 and TL074 quad op amps and can be used to upgrade systems using these devices.
For applications requiring even lower voltage noise the OP-470, with a voltage density of 5nV/(root)Hz Max at 1kHz, is recommended.
OP471 特点
- Excellent Speed: 8 V/us Typ
- Low Noise: 11 nV/√Hz @ 1 kHz Max
- Unity-Gain Stable
- High Gain Bandwidth: 6.5 MHz Typ
- Low Input Offset Voltage: 0.8 mV Max
- Low Offset Voltage Drift: 4 uV/°C Max
- High Gain: 500 V/mV Min
- Outstanding CMR: 105 dB Min
- Industry Standard Quad Pinouts

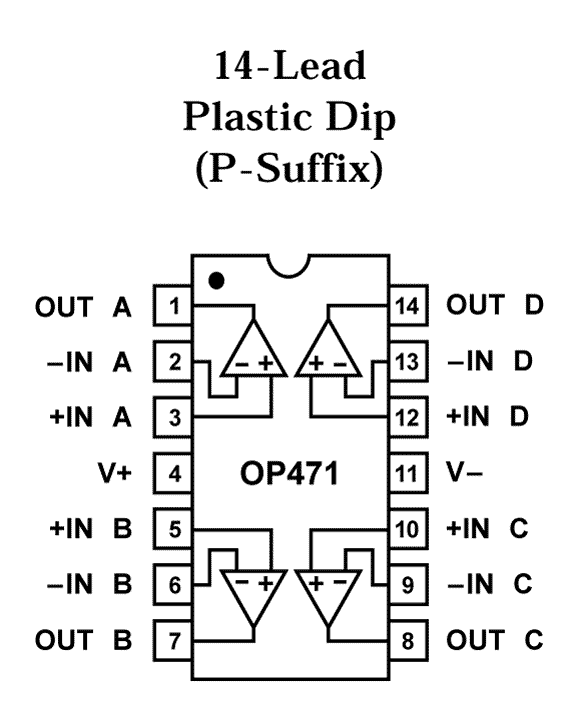

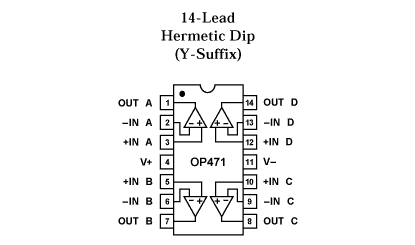

OP471 功能框图
OP471 技术指标
| -3dB Bandwidth | 6.5MHz | Vcc-Vee Supply (V) | 9 to 36 |
| Slew Rate | 8V/us | Iq per Amplifier | 2.75mA |
| Vos | 1mV | # OpAmps per Pkg | 4 |
| Ib | 25nA | Operating Temp Range | -55 to +125 |
| Input Noise (nV/rtHz) | 6.5nV/rtHz | Packages | LCC,SOIC |
OP471 订购指南
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-88565022A | 量产 | LCC:CER LEADLESS CHIP CARR | 20 | 工业 |
| 5962-88565023A | 量产 | LCC:CER LEADLESS CHIP CARR | 28 | 工业 |
| 5962-8856502CA | 量产 | CERDIP GLASS SEAL | 14 | 工业 |
| OP471EY | 量产 | CERDIP GLASS SEAL | 14 | 工业 |
| OP471GPZ | 量产 | 14 ld PDIP | 14 | 工业 |
| OP471GS | 量产 | 16 ld SOIC - Wide | 16 | 工业 |
| OP471GS-REEL | 量产 | 16 ld SOIC - Wide | 16 | 工业 |
| OP471GSZ | 量产 | 16 ld SOIC - Wide | 16 | 工业 |
| OP471GSZ-REEL | 量产 | 16 ld SOIC - Wide | 16 | 工业 |
EVAL-PRAOPAMP: Universal Precision Op Amp Evaluation Board
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| EVAL-PRAOPAMP-1KSZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-1RJZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-1RMZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-1RZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-2RMZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-2RZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-4RUZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-4RZ | 量产 | 评估板 | 商业 |
