OP270: 运算放大器
The OP-270 is a high-performance monolithic dual operational amplifier with exceptionally low voltage noise, 5nV/(root)Hz at 1kHz Max, offering comparable performance to PMI's industry standard OP-27.
The OP-270 features an input offset voltage below 75uV and offset drift under 1uV/°C, guaranteed over the full military temperature range. Open-loop gain of the OP-270 is over 1,500,000 into a 10k Ohm load insuring excellent gain accuracy and linearity, even in high-gain applications. Input bias current is under 20nA which reduces errors due to signal source resistance. The OP-270's CMR of over 106dB and PSRR of less than 3.2uV/V significantly reduce errors due to ground noise and power supply fluctuations. Power consumption of the dual OP-270 is one-third less than two OP-27s, a significant advantage for power concious applications. The OP-270 is unity-gain stable with a gain-bandwidth product of 5MHz and a slew rate of 2.4V/us.
The OP-270 offers excellent amplifier matching which is important for applications such as multiple gain blocks, low-noise instrumentation amplifiers, dual buffers, and low-noise active filters.
The OP-270 conforms to the industry standard 8-pin DIP pinout. It is pin compatible with the MC1458/1558, SE5532/A, RM4558, and HA5102 dual op amps and can be used to upgrade systems using these devices.
For higher speed applications the OP-271, with a slew rate of 8V/us, is recommended. For a quad op amp, see the OP-470.
OP270 特点
- Very Low Noise 5 nV/√Hz @ 1 kHz Max
- Excellent Input Offset Voltage 75 uV Max
- Low Offset Voltage Drift 1 uV/°C Max
- Very High Gain 1500 V/mV Min
- Outstanding CMR 106 dB Min
- Slew Rate 2.4 V/us Typ
- Gain Bandwidth Product 5 MHz Typ
- Industry-Standard 8-Lead Dual Pinout

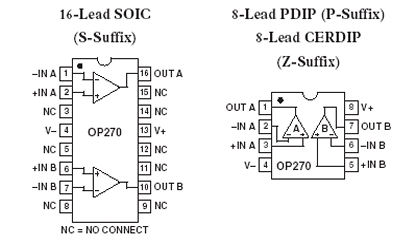

OP270 功能框图
OP270 技术指标
| -3dB Bandwidth | 5MHz | Vcc-Vee Supply (V) | 9 to 36 |
| Slew Rate | 2.4V/us | Iq per Amplifier | 3.25mA |
| Vos | 50uV | # OpAmps per Pkg | 2 |
| Ib | 15nA | Operating Temp Range | -55 to +125 |
| Input Noise (nV/rtHz) | 3.2nV/rtHz | Packages | DIP,SOIC |
OP270 订购指南
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-8872101PA | 量产 | CERDIP GLASS SEAL | 8 | 工业 |
| OP270EZ | 量产 | CERDIP GLASS SEAL | 8 | 工业 |
| OP270FZ | 量产 | CERDIP GLASS SEAL | 8 | 工业 |
| OP270GP | 量产 | 8 ld PDIP | 8 | 工业 |
| OP270GPZ | 量产 | 8 ld PDIP | 8 | 工业 |
| OP270GS | 量产 | 16 ld SOIC - Wide | 16 | 工业 |
| OP270GS-REEL | 量产 | 16 ld SOIC - Wide | 16 | 工业 |
| OP270GSZ | 量产 | 16 ld SOIC - Wide | 16 | 工业 |
| OP270GSZ-REEL | 量产 | 16 ld SOIC - Wide | 16 | 工业 |
EVAL-PRAOPAMP: Universal Precision Op Amp Evaluation Board
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| EVAL-PRAOPAMP-1KSZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-1RJZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-1RMZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-1RZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-2RMZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-2RZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-4RUZ | 量产 | 评估板 | 商业 | |
| EVAL-PRAOPAMP-4RZ | 量产 | 评估板 | 商业 |
