OP249: Dual, Precision JFET High Speed Operational Amplifier

The OP249 is a high speed, precision dual JFET op amp, similar to the popular single op amp, the OP42. The OP249 outperforms available dual amplifiers by providing superior speed with excellent dc performance. Ultrahigh open-loop gain (1 kV/mV minimum), low offset voltage, and superb gain linearity makes the OP249 the industry’s first true precision, dual high speed amplifier.

With a slew rate of 22 V/μs typical and a fast settling time of less than 1.2 μs maximum to 0.01%, the OP249 is an ideal choice for high speed bipolar DAC and ADC applications. The excellent dc performance of the OP249 allows the full accuracy of high resolution CMOS DACs to be realized.

Symmetrical slew rate, even when driving large load, such as, 600 Ω or 200 pF of capacitance and ultralow distortion, make the OP249 ideal for professional audio applications, active filters, high speed integrators, servo systems, and buffer amplifiers.

The OP249 provides significant performance upgrades to the TL072, AD712, OP215, MC34082, and LT1057.

产品应用领域 Applications

• Output amplifier for fast DACs
• Signal processing
• Instrumentation amplifiers
• Fast sample-and-holds
• Active filters
• Low distortion audio amplifiers
• Input buffer for ADCs
• Servo controllers

OP249 特点

• Fast slew rate: 22 V/μs typical
• Settling time (0.01%): 1.2 μs maximum
• Offset voltage: 300 μV maximum
• High open-loop gain: 1000 V/mV minimum
• Low total harmonic distortion: 0.002% typical
• Improved replacement for AD712, LT1057, OP215, TL072, and MC34082

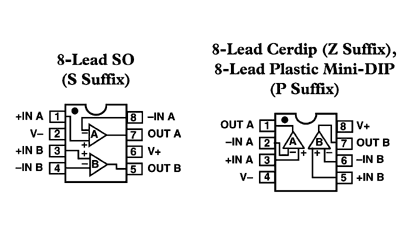

OP249 功能框图

OP249 技术指标

-3dB Bandwidth	4.7MHz	Vcc-Vee Supply (V)	9 to 36
Slew Rate	22V/us	Iq per Amplifier	3.5mA
Vos	400uV	# OpAmps per Pkg	2
Ib	40pA	Operating Temp Range	-55 to +125
Input Noise (nV/rtHz)	16nV/rtHz	Packages	DIP,LCC,SOIC

OP249 订购指南

产品型号	产品状态	封装	引脚	温度范围
5962-9151901M2A	量产	LCC:CER LEADLESS CHIP CARR	20	军用
5962-9151901MPA	量产	CERDIP GLASS SEAL	8	军用
OP249AZ	量产	CERDIP GLASS SEAL	8	军用
OP249FZ	量产	CERDIP GLASS SEAL	8	工业
OP249GP	量产	8 ld PDIP	8	工业
OP249GPZ	量产	8 ld PDIP	8	工业
OP249GS	量产	8 ld SOIC	8	工业
OP249GS-REEL	量产	8 ld SOIC	8	工业
OP249GS-REEL7	量产	8 ld SOIC	8	工业
OP249GSZ	量产	8 ld SOIC	8	工业
OP249GSZ-REEL	量产	8 ld SOIC	8	工业
OP249GSZ-REEL7	量产	8 ld SOIC	8	工业

EVAL-PRAOPAMP: Universal Precision Op Amp Evaluation Board

产品型号	产品状态	封装	引脚	温度范围
EVAL-PRAOPAMP-1KSZ	量产	评估板		商业
EVAL-PRAOPAMP-1RJZ	量产	评估板		商业
EVAL-PRAOPAMP-1RMZ	量产	评估板		商业
EVAL-PRAOPAMP-1RZ	量产	评估板		商业
EVAL-PRAOPAMP-2RMZ	量产	评估板		商业
EVAL-PRAOPAMP-2RZ	量产	评估板		商业
EVAL-PRAOPAMP-4RUZ	量产	评估板		商业
EVAL-PRAOPAMP-4RZ	量产	评估板		商业
