OP200: 运算放大器

The OP200 is the first monolithic dual operational amplifier to offer OP77 type precision performance. Available in the industry standard 8-lead pinout, the OP200 combines precision performance with the space and cost savings offered by a dual amplifier.

The OP200 features an extremely low input offset voltage of less than 75 μV with a drift below 0.5 μV/°C, guaranteed over the full military temperature range. Open-loop gain of the OP200 exceeds 5,000,000 into a 10 kΩ load; input bias current is under 2 nA; CMRR is over 120 dB; and PSRR is below 1.8 μV/V. On-chip Zener zap trimming is used to achieve the extremely low input offset voltage of the OP200 and eliminates the need for offset pulling.

Power consumption of the OP200 is low, with each amplifier drawing less than 725 μA of supply current. The total current drawn by the dual OP200 is less than one-half that of a single OP07, yet the OP200 offers significant improvements over this industry-standard op amp. The voltage noise density of the OP200, 11 nV/√Hz at 1 kHz, is half that of most competitive devices.

The OP200 is pin compatible with the OP221, LM158, MC1458/MC1558, and LT1013.

The OP200 is an ideal choice for applications requiring multiple precision op amps and where low power consumption is critical. For a quad precision op amp, see the OP400.

OP200 特点

• Low input offset voltage: 75 μV maximum
• Low offset voltage drift, over -55°C < TA < +125°C
• 0.5 μV/°C maximum
• Low supply current (per amplifier): 725 μA maximum
• High open-loop gain: 5000 V/mV minimum
• Low input bias current: 2 nA maximum
• Low noise voltage density: 11 nV/√Hz at 1 kHz
• Stable with large capacitive loads: 10 nF typical

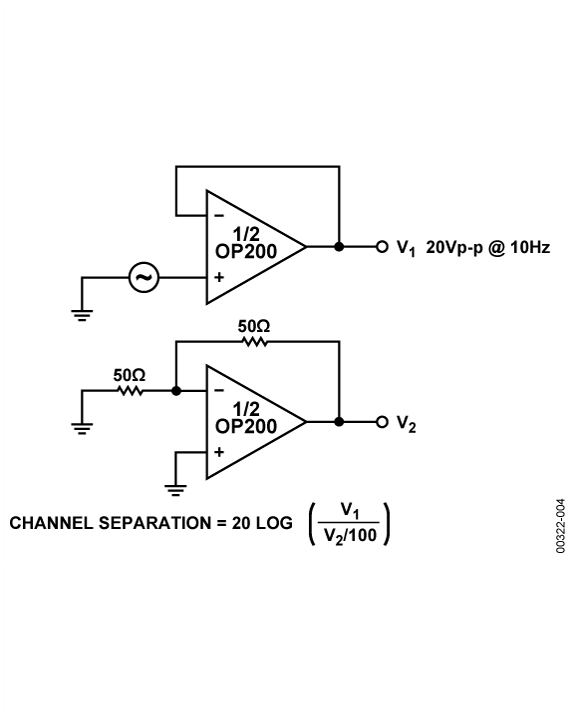

OP200 功能框图

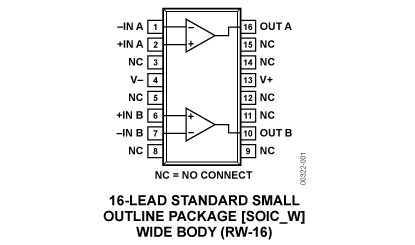

芯片引脚定义图

OP200 技术指标

-3dB Bandwidth	500kHz	Vcc-Vee Supply (V)	6 to 40
Slew Rate	150mV/us	Iq per Amplifier	775uA
Vos	80uV	# OpAmps per Pkg	2
Ib	100pA	Operating Temp Range	-55 to +125
Input Noise (nV/rtHz)	11nV/rtHz	Packages	DIP,LCC,SOIC

OP200 订购指南

产品型号	产品状态	封装	引脚	温度范围
5962-8859301M2A	量产	LCC:CER LEADLESS CHIP CARR	20	军用
5962-8859301MPA	量产	CERDIP GLASS SEAL	8	军用
OP200AZ	量产	8 ld CerDIP	8	军用
OP200EZ	量产	8 ld CerDIP	8	工业
OP200GP	量产	8 ld PDIP	8	工业
OP200GPZ	量产	8 ld PDIP	8	工业
OP200GS	量产	16 ld SOIC - Wide	16	工业
OP200GS-REEL	量产	16 ld SOIC - Wide	16	工业
OP200GSZ	量产	16 ld SOIC - Wide	16	工业
OP200GSZ-REEL	量产	16 ld SOIC - Wide	16	工业

EVAL-PRAOPAMP: Universal Precision Op Amp Evaluation Board

产品型号	产品状态	封装	引脚	温度范围
EVAL-PRAOPAMP-1KSZ	量产	评估板		商业
EVAL-PRAOPAMP-1RJZ	量产	评估板		商业
EVAL-PRAOPAMP-1RMZ	量产	评估板		商业
EVAL-PRAOPAMP-1RZ	量产	评估板		商业
EVAL-PRAOPAMP-2RMZ	量产	评估板		商业
EVAL-PRAOPAMP-2RZ	量产	评估板		商业
EVAL-PRAOPAMP-4RUZ	量产	评估板		商业
EVAL-PRAOPAMP-4RZ	量产	评估板		商业
