OP11S: Aerospace Quad Matched 741-Type Op Amp
The OP11 provides four matched 741-type operational amplifiers in a single 14-lead PDIP. The OP11 is pin compatible with the LM148, LM348, RM4156, RM4158, and HA4741 amplifiers. The amplifier is matched for common-mode rejection ratio and offset voltage, which is very important in designing instrumentation amplifiers. In addition, the amplifier is designed to have equal positive-going and negative-going slew rates, which is an important consideration for good audio system performance.
The OP11 is ideal for use in designs requiring minimum space and cost while maintaining performance.
OP11S 特点
- Guaranteed VOS: 500 μV maximum
- Guaranteed matched CMRR: 94 dB minimum
- Guaranteed matched VOS: 750 μV maximum
- LM148/LM348 direct replacement
- Low noise
- Silicon-nitride passivation
- Internal frequency compensation
- Low crossover distortion
- Continuous short-circuit protection
- Low input bias current

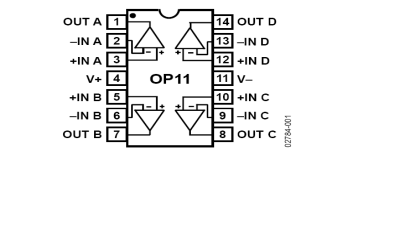

OP11S 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-8980101VCA | 量产 | CERDIP GLASS SEAL | 14 | 军用 |
| 5962-8980101VDA | 量产 | CER. FLATPACK WITH LEADS | 14 | 军用 |
| OP110000C | 量产 | CHIPS OR DIE | - | 军用 |
