MUX08 8-Chan/Dual 4-Chan JFET Analog Multiplexers

MUX08: 8-Chan/Dual 4-Chan JFET Analog Multiplexers (Overvoltage Power Supply Loss Protected)

The MUX-08 is a monolithic eight-channel analog multiplexer which connects a single output to one of the eight analog inputs depending upon the state of a 3-bit binary address.

The MUX-24 is a monolithic four-channel differential analog multiplexer configured in a double pole, four position (plus OFF) electronic switch array. A two-bit binary input address connects a pair of independent analog inputs from each four channel input section to the corresponding pair of independent analog outputs.

All switches in the MUX-08/MUX-24 are turned OFF by applying logic "0" to the ENABLE pin, thereby providing a package select funtion.

Fabricated with Precision Monolithics' high performance Bipolar-JFET technology, these devices offer low, constant "ON" resistance, low leakage currents and fast settling time with low crosstalk to satisfy a wide variety of applications.

These multiplexors do not suffer from latch-up or static charge blow-out problems associated with similar CMOS parts. The digital inputs are designed to operate form both TTL and CMOS levels while always providing a definite break-before-make action without the need for external pull-up resistors over the full operating temperature range.

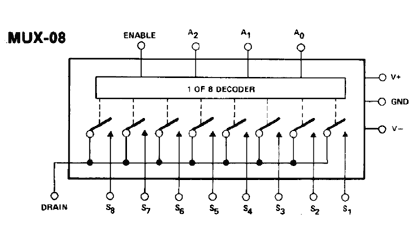

MUX08 功能框图

MUX08 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
5962-8771601EA	量产	16 ld CerDIP	16	工业
5962-87716022A	量产	LCC:CER LEADLESS CHIP CARR	20	工业
5962-8771602EA	量产	16 ld CerDIP	16	工业
MUX08AQ/883C	量产	16 ld CerDIP	16	工业
MUX08BQ/883C	量产	16 ld CerDIP	16	工业
MUX08EP	量产	16 ld PDIP	16	待定
MUX08EPZ	量产	PLASTIC DIP	16	待定
MUX08EQ	量产	16 ld CerDIP	16	待定
MUX08FP	量产	16 ld PDIP	16	待定
MUX08FPZ	量产	PLASTIC DIP	16	待定
MUX08FQ	量产	16 ld CerDIP	16	待定
MUX08FS	量产	16 ld SOIC	16	待定
MUX08FSZ	量产	16 ld SOIC	16	待定
MUX08NBC	量产	CHIPS OR DIE	-	待定
MUX08NTBC	量产	CHIPS OR DIE	-	待定
