EVAL-ADM1070EB: - 48 V Hot Swap Controller in SOT-23 with Linear Current Limiting
The ADM1070 -48 V hot swap controller is designed for central office applications. The space-saving SOT-23 package occupies just 25% of the board area of an 8 pin SOIC solution. The device utilizes a linear current control method and protects the supply from in-rush currents (board insertion) and short circuits (board failure). The ADM1070 also provides protection during voltage steps associated with card re-seating. It current limits under all conditions.
产品应用领域 Applications
- Central Office Switching
- -48 V Distributed Power Systems
- Negative Power Supply Control
EVAL-ADM1070EB 特点
- Allows safe board insertion and removal from a live -48V backplane
- Operates from a typical -36V to -80V
- Tolerates transients up to -200V (limited by external components)
- Accurate programmable linear current limit for inrush control
- Programmable time-out in current limit
- Auto-restart after current limit time-out
- Shutdown after 7 consecutive auto-restarts
- Default timing provided with no osc cap
- Single pin under/overvoltage detection
- Programmable under/overvoltage time filter
- Small 6-pin SOT-23 package

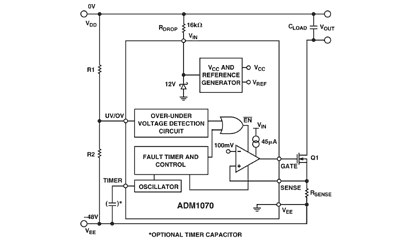

EVAL-ADM1070EB 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADM1070ART-REEL7 | 量产 | 6 ld TSOT | 6 | 工业 |
| ADM1070ARTZ-REEL | 量产 | 6 ld TSOT | 6 | 工业 |
| ADM1070ARTZ-REEL7 | 量产 | 6 ld TSOT | 6 | 工业 |
| EVAL-ADM1070EB | 量产 | 评估板 | - | 待定 |
| EVAL-ADM1070MEB | 量产 | 评估板 | - | 待定 |
