EVAL-ADF7011EB1: High Performance ISM Band ASK/FSK/GFSK Transmitter IC
The ADF7011 is a low power OOK/ASK/FSK/GFSK UHF transmitter designed for use in ISM band systems. It contains and integrated VCO and sigma-delta fractional-N PLL. The output power, channel spacing, and output frequency are programmable with four 24-bit registers. The fractional-N PLL enables the user to select any channel frequency within the European 433 MHz and 868 MHz bands, allowing the use of the ADF7011 in frequency hopping systems. The fractional-N also allows the transmitter to operate in the less congested sub-bands of the 868 MHz to 870 MHz SRD band.
It is possible to choose from the four different modulation schemes: Binary or Gaussian Frequency Shift Keying (FSK/GFSK), Amplitude Shift Keying (ASK), or On/Off Keying (OOK). The device also features a crystal compensation register that can provide ±1 ppm resolution in the output frequency. Indirect temperature compensation of the crystal can be accomplished inexpensively using this register.
Control of the four on-chip registers is via a simple 3-wire interface. The devices operate with a power supply ranging from 2.3 V to 3.6 V and can be powered down when not in use.
EVAL-ADF7011EB1 特点
- Single Chip Low Power UHF Transmitter
- Frequency Band 433 MHz to 435 MHz 868 MHz to 870 MHz
- On-Chip VCO and Fractional-N PLL
- Programmable Output Power –16 dBm to +12 dBm, 0.3 dB Steps
- 2.3 V to 3.6 V Supply Voltage
- Data Rates up to 76.8 kbps
- Low Current Consumption -29 mA at +10 dBm at 433.92 MHz
- Power-Down Mode (<1 µA)
- 24-Lead TSSOP Package Hooks to External VCO for < 1.4 GHz Operation

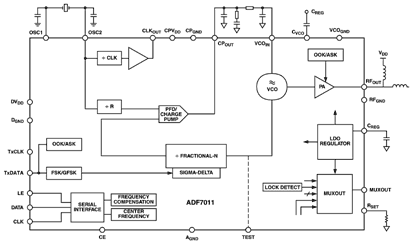

EVAL-ADF7011EB1 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADF7011BRUZ | 量产 | 24 ld TSSOP | 24 | 工业 |
| ADF7011BRUZ-RL | 量产 | 24 ld TSSOP | 24 | 工业 |
| ADF7011BRUZ-RL7 | 量产 | 24 ld TSSOP | 24 | 工业 |
| EVAL-ADF7011EB1 | 量产 | 评估板 | - | 待定 |
| EVAL-ADF7011EB2 | 量产 | 评估板 | - | 待定 |
