EVAL-AD5290EBZ: Compact +30V/±15V 256-Position Digital Potentiometer

The AD5290 is a low cost, compact 2.9 mm × 3 mm +30V/±15V, 256-position digital potentiometer. This device performs the same electronic adjustment function as mechanical potentiometers or variable resistors, with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance.

The wiper settings are controllable through an SPI compatible digital interface. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch.

The AD5290 is available in 10k, 50k, and 100kOhm in compact MSOP-10 package. AD5290 can be operated from a single supply to +30 V or dual supply to ±15 V. All parts are guaranteed to operate over the automotive temperature range of -40°C to +125°C.

EVAL-AD5290EBZ 特点

• 256-position
• +2.7V to +30V Single Supply Operation
• ±2.7V to ±15V Dual Supply Operation
• End-to-end resistance 10 kOhm , 50 kOhm , 100 kOhm
• Low temperature coefficient 35 ppm/°C
• Power-on preset to midscale
• SPI compatible interface
• Automotive temperature range
  –40°C to +105°C
• Compact MSOP-10 (3 mm × 4.9 mm) package

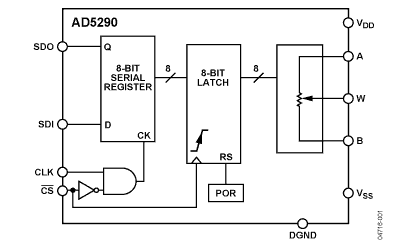

EVAL-AD5290EBZ 功能框图

AD5290 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
AD5290XRMZ10-R7	量产	10 ld MSOP	10	工业
AD5290XRMZ100	量产	10 ld MSOP	10	工业
AD5290XRMZ100-R7	量产	10 ld MSOP	10	工业
AD5290XRMZ50	量产	10 ld MSOP	10	工业
AD5290XRMZ50-R7	量产	10 ld MSOP	10	工业
AD5290YRM10-R7	量产	10 ld MSOP	10	工业
AD5290YRMZ10	量产	10 ld MSOP	10	工业
AD5290YRMZ10-R7	量产	10 ld MSOP	10	工业
AD5290YRMZ100	量产	10 ld MSOP	10	工业
AD5290YRMZ100-R7	量产	10 ld MSOP	10	工业
AD5290YRMZ50	量产	10 ld MSOP	10	工业
AD5290YRMZ50-R7	量产	10 ld MSOP	10	工业
EVAL-AD5290EBZ	量产	评估板	-	待定
