EVAL-AD5263EBZ: Quad, 15 V, 256-Position Digital Potentiometer with Pin-Selectable SPI/I^2C
The AD5263 is the industry’s first quad-channel, 256-position, digital potentiometer* with a selectable digital interface. This device performs the same electronic adjustment function as mechanical potentiometers or variable resistors, with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance.
Each channel of the AD5263 offers a completely programmable value of resistance between the A terminal and the wiper or between the B terminal and the wiper. The fixed A-to-B terminal resistance of 20 kΩ, 50 kΩ, or 200 kΩ has a nominal temperature coefficient of ±30 ppm/°C and a ±1% channel-to-channel matching tolerance. Another key feature of this part is the ability to operate from +4.5 V to +15 V, or at ±5 V.
Wiper position programming presets to midscale upon power-on. Once powered, the VR wiper position is programmed by either the 3-wire SPI or 2-wire I^2C-compatible interface. In the I^2C mode, additional programmable logic outputs enable users to drive digital loads, logic gates, and analog switches in their systems.
The AD5263 is available in a narrow body, 24-lead TSSOP. All parts are guaranteed to operate over the automotive temperature range of –40°C to +125°C.
产品应用领域 Applications
- Mechanical potentiometer replacement
- Optical network adjustment
- Instrumentation: gain, offset adjustment
- Stereo channel audio level control
- Automotive electronics adjustment
- Programmable power supply
- Programmable filters, delays, time constants
- Line impedance matching
- Low resolution DAC/trimmer replacement
- Base station power amp biasing
- Sensor calibration
EVAL-AD5263EBZ 特点
- 256-position, 4-channel
- End-to-end resistance 20 kΩ, 50 kΩ, 200 kΩ
- Pin-selectable SPI(R)- or I^2C(R)-compatible interface
- Power-on preset to midscale
- Two package address decode pins AD0 and AD1
- Rheostat mode temperature coefficient 30 ppm/°C
- Voltage divider temperature coefficient 5 ppm/°C
- Wide operating temperature range –40°C to +125°C
- 5 V to 15 V single supply; ±5 V dual supply

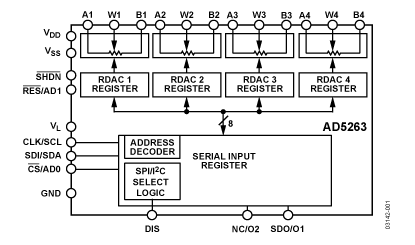

EVAL-AD5263EBZ 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD5263BRU20 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| AD5263BRU200 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| AD5263BRU50 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| AD5263BRU50-REEL7 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| AD5263BRUZ20 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| AD5263BRUZ20-REEL7 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| AD5263BRUZ200 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| AD5263BRUZ200-R7 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| AD5263BRUZ50 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| AD5263BRUZ50-REEL7 | 量产 | 24 ld TSSOP | 24 | 汽车级 |
| EVAL-AD5263EBZ | 量产 | 评估板 | - | 待定 |
