EVAL-AD5160EBZ: 256 Position SPI Compatible Digital Potentiometer
The AD5160 provides a compact 2.9 mm × 3 mm packaged solution for 256-position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers1 or variable resistors but with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance.
The wiper settings are controllable through an SPI-compatible digital interface. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch.
Operating from a 2.7 V to 5.5 V power supply and consuming less than 5 μA allows for usage in portable battery-operated applications.
EVAL-AD5160EBZ 特点
- 256-position
- End-to-end resistance: 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
- Compact SOT-23-8 (2.9 mm × 3 mm) package
- SPI-compatible interface
- Power-on preset to midscale
- Single supply: 2.7 V to 5.5 V
- Low temperature coefficient: 45 ppm/°C
- Low power, IDD = 8 μA
- Wide operating temperature: –40°C to +125°C
- Evaluation board available

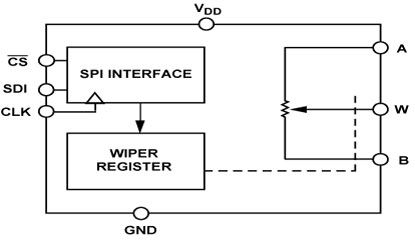

EVAL-AD5160EBZ 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD5160BRJZ10-R2 | 量产 | 8 ld SOT-23 | 8 | 汽车级 |
| AD5160BRJZ10-RL7 | 量产 | 8 ld SOT-23 | 8 | 汽车级 |
| AD5160BRJZ100-R2 | 量产 | 8 ld SOT-23 | 8 | 汽车级 |
| AD5160BRJZ100-RL7 | 量产 | 8 ld SOT-23 | 8 | 汽车级 |
| AD5160BRJZ5-R2 | 量产 | 8 ld SOT-23 | 8 | 汽车级 |
| AD5160BRJZ5-RL7 | 量产 | 8 ld SOT-23 | 8 | 汽车级 |
| AD5160BRJZ50-RL7 | 量产 | 8 ld SOT-23 | 8 | 汽车级 |
| EVAL-AD5160EBZ | 量产 | 评估板 | - | 待定 |
