AMP01S: Aerospace Low-Noise Precision Instrumentation Amplifier

The AMP01 is a monolithic instrumentation amplifier designed for high-precision data acquisition and instrumentation applications. The design combines the conventional features of an instrumentation amplifier with a high current output stage. The output remains stable with high capacitance loads (1 uF), a unique ability for an instrumentation amplifier. Consequently, the AMP01 can amplify low level signals for transmission through long cables without requiring an output buffer. The output stage may be configured as a voltage or current generator.

Input offset voltage is very low (20 uV) which generally eliminates the external null potentiometer. Temperature changes have minimal effect on offset; TCVIOS is typically 0.15 uV/°C. Excellent low-frequency noise performance is achieved with a minimal compromise on input protection. Bias current is very low, less than 10 nA over the military temperature range. High common-mode rejection of 130 dB, 16-bit linearity at a gain of 1000, and 50 mA peak output current are achievable simultaneously. This combination takes the instrumentation amplifier one step further towards the ideal amplifier.

AC performance complements the superb dc specifications. The AMP01 slews at 4.5 V/us into capacitive loads of up to 15 nF, settles in 50 us to 0.01% at a gain of 1000, and boasts a healthy 26 MHz gain-bandwidth product. These features make the AMP01 ideal for high speed data-acquisition systems.

Gain is set by the ratio of two external resistors over a range of 0.1 to 10,000. A very low gain-temperature-coefficient of 10 ppm/°C is achievable over the whole gain range. Output voltage swing is guaranteed with three load resistances; 50 Ohm, 500 Ohm, and 2 kOhm. Loaded with 500 Ohm, the output delivers ±13.0 V minimum. A thermal shutdown circuit prevents destruction of the output transistors during overload conditions.

The AMP01 can also be configured as a high performance operational amplifier. In many applications, the AMP01 can be used in place of op amp/power-buffer combinations.

AMP01S 特点

Low Offset Voltage: 50 uV Max
Very Low Offset Voltage Drift: 0.3 uV/°C Max
Low Noise: 0.12 uV p-p (0.1 Hz to 10 Hz)
Excellent Output Drive: ±10 V at ±50 mA
Capacitive Load Stability: to 1 uF
Gain Range: 0.1 to 10,000
Excellent Linearity: 16-Bit at G = 1000
High CMR: 125 dB min (G = 1000)
Low Bias Current: 4 nA Max
May Be Configured as a Precision Op Amp
Output-Stage Thermal Shutdown
Available in Die Form

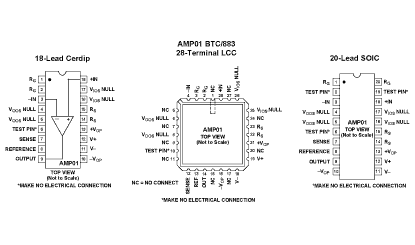

AMP01S功能框图

AMP01S 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
5962-8863001V3A	量产	LCC:CER LEADLESS CHIP CARR	28	军用
5962-8863001VVA	量产	S/B OR B/B CERAMIC DIP	18	军用
5962-8863003V3A	量产	LCC:CER LEADLESS CHIP CARR	28	军用
5962-8863003VKA	量产	CER. FLATPACK WITH LEADS	24	军用
5962-8863003VVA	量产	S/B OR B/B CERAMIC DIP	18	待定
AMP01-000C	量产	CHIPS OR DIE	-	军用
