EZ-KIT Lite Evaluation Kit for ADSP-TS201S Processor

ADZS-TS201S-EZLITE 说明

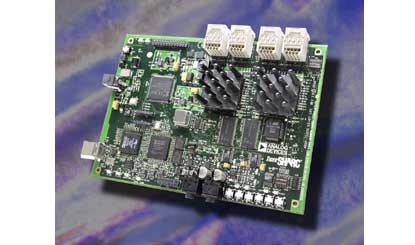

The ADSP-TS201S EZ-KIT Lite provides developers with a cost-effective method for initial evaluation of the ADSP-TS201S TigerSHARC® Processor and its multiprocessing capabilities. This EZ-KIT Lite includes two ADSP-TS201S processors on a desktop evaluation board along with fundamental debugging software to facilitate architecture evaluations via a USB-based PC-hosted tool set. With this EZ-KIT Lite, users can learn more about ADI’s ADSP-TS201S hardware and software development environments and quickly prototype applications. The ADSP-TS201S EZ-KIT Lite provides an evaluation suite of the VisualDSP++ development and debugging environment with the C/C++ compiler, assembler, and linker. Via the USB interface, VisualDSP++ can communicate with the included software debug agent enabling users to perform standard debugging functions (such as read and write memory, read and write registers, load and execute executables, set and clear breakpoints, and single-step assembly, C, and C++ source code) and multiprocessor functions (such as synchronous step, synchronous run, and synchronous halt). The evaluation versions of the included software tools have limited use with the EZ-KIT Lite.

The EZ-KIT Lite’s default EPROM boot mode enables the board to be used as a standalone unit without the requirement for a PC-host. If desired, the board can boot from an optional external host port interface connector, link port or “No Boot” based on jumper selections. The EZ-KIT Lite also includes a FLASH utility that can be used to download user specific boot code to the on-board FLASH memory using the USB interface

ADZS-TS201S-EZLITE 特点

• Dual ADSP-TS201S TigerSHARC® Processors
• 4 Mb (512K x 8-bit) FLASH memory
• 32 MB (4M x 64-bit) SDRAM
• AD1871 stereo, 24-bit, 96 kHz, multi-bit Sigma-Delta ADC
• AD1854 stereo, 24-bit, 96 kHz, multi-bit Sigma-Delta DAC
• Two 1/8” stereo audio jacks
• 4 external LVDS link port connectors (1 Transmit and 1 Receive per processor)

ADZS-TS201S-EZLITE 最低系统配置

• Pentium® 166 MHz or higher
• Minimum of 32 megabytes of RAM
• Windows® 98, Windows 2000, or Windows XP
• One available USB connector

ADZS-TS201S-EZLITE 功能框图

ADZS-TS201S-EZLITE 应用技术支持与电子电路设计开发资源下载

1. ADZS-TS201S-EZLITE 数据手册DataSheet 下载 .PDF（开发工具使用说明书）
2. ADI 模拟器件公司比较器产品选型指南 .PDF
3. Analog Devices, Inc. 美国模拟器件公司产品订购手册 .PDF
4. ADSP-TS201 硬件技术手册 .PDF
5. ADSP-TS201 编程技术手册 .PDF
