ADSP-21375 SHARC EZ-KIT Lite Evaluation Kit

ADZS-21375-EZLITE 说明

The ADSP-21375 EZ-KIT Lite® provides developers with a cost-effective method for initial evaluation of the ADSP-2137x SHARC® Processors via a USB-based, PC-hosted tool set. With this EZ-KIT Lite, users can learn more about the Analog Devices (ADI) ADSP-2137x hardware and software development tools, and quickly prototype a wide range of applications.

The EZ-KIT Lite includes an ADSP-21375 SHARC Processor desktop evaluation board along with an evaluation suite of the VisualDSP++® development and debugging environment, including the C/C++ compiler, assembler, and linker. The evaluation suite of VisualDSP++ is designed to be used with the EZ-KIT Lite only.

Additionally, the ADSP-21375 EZ-KIT Lite contains the National Instruments Educational Laboratory Virtual Instrumentation Suite (ELVIS) interface. This interface will allow using the DC voltage and current measurement modules, oscilloscope and bode analyzer modules, function generator, arbitrary waveform generator and digital I/O. NI ELVIS is a LabVIEW-based design and prototype environment for university science and engineering laboratories curriculum. For more details, go to www.ni.com.

ADZS-21375-EZLITE 特点

• ADSP-21375 SHARC® Processor
• 1M x 8-bit FLASH memory
• 8M x 16-bit (167MHz) SDRAM
• 2Mbit SPI® FLASH memory
• AD1835 stereo, 96 kHz, 24-bit codec
• USB-based debugger interface
• Evaluation suite of VisualDSP++ development tools

ADZS-21375-EZLITE 最低配置要求

• Pentium® 166 MHz or higher
• 32MB of RAM
• Windows® 98/2000/XP
• One available USB connector

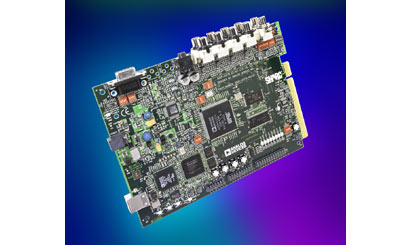

ADZS-21375-EZLITE 实物图
