ADSP-21369 SHARC EZ-KIT Lite Evaluation Kit

ADZS-21369-EZLITE 说明

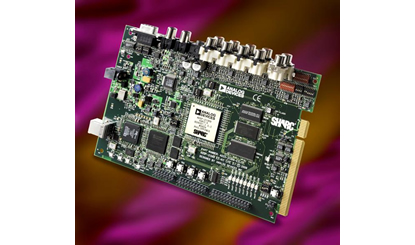

The ADSP-21369 EZ-KIT Lite® provides developers with a cost-effective method for initial evaluation of the ADSP-21367, ADSP-21368 and/or ADSP-21369 SHARC® Processor architecture via a USB-based, PC-hosted tool set. With this EZ-KIT Lite, users can learn more about Analog Devices' (ADI's) ADSP-21369 hardware and software development and quickly prototype a wide range of applications.

The EZ-KIT Lite includes an ADSP-21369 SHARC Processor desktop evaluation board along with an evaluation suite of the VisualDSP++® development and debugging environment including the C/C++ compiler, assembler, and linker. The evaluation suite of VisualDSP++ is designed to be used with the EZ-KIT Lite only.

An Analog Devices SHARC USB EZ-Extender daughter board (sold separately) can attach to the ADSP-21369 EZ-KIT Lite using the three expansion connectors, allowing a USB 2.0 peripheral to directly connect to the ADSP21369 external port and interface with the EZ-KIT Lite.

ADZS-21369-EZLITE 特点

• ADSP-21369 SHARC Processor
• AD1835 stereo, 96 kHz, 24-bit codec
• 1M x 8-bit FLASH memory
• 1M x 32-bit x 4 banks SDRAM
• 512K x 8-bit SRAM
• 2 Mbit SPI FLASH memory
• ADM3202 RS-232 driver/receiver
• USB-based debugger interface
• Evaluation suite of VisualDSP++ development tools

ADZS-21369-EZLITE 最低配置要求

• Intel Pentium 166 MHz, or higher
• 32 MB RAM, minimum
• Windows® 2000/XP

ADZS-21369-EZLITE 功能框图
