ADSP-BF534: Blackfin Processor with CAN Connectivity for Automotive & Industrial Applications
The Blackfin(R) Processor family has been expanded to address the need for embedded Controller Area Network (CAN) connectivity. This connectivity is powerful when utilized in conjunction with the high performance 16-/32-bit Blackfin embedded processor core, the flexible cache architecture, the enhanced DMA subsystem, and the Dynamic Power Management (DPM) functionality. System designers can take advantage of the combined control and signal processing capabilities of the processor core across a wide range of end applications.
The ADSP-BF534 is a functional extension of the popular ADSP-BF531/ADSP-BF532/ADSP-BF533 processors and is ideally suited for a variety of CAN networked applications. The ADSP-BF534 offers a high performance series for embedded applications such as automotive safety, automotive body control, automotive driver assistance, automotive entertainment, and industrial factory automation. This processor is ideally suited for a broad range of industrial, instrumentation, and medical applications that allow for scalability and CAN network connectivity that utilize a mix of control, plus signal processing in the end product for robust systems
ADSP-BF534 特点
- Up to 500MHz High Performance Blackfin processor
- 10-stage RISC MCU/DSP pipeline with mixed 16-/32-bit ISA for optimal code density
- Powerful and flexible cache architecture suitable for soft real-time control tasks and industry-standard operating systems, plus hard real-time signal processing
- Full SIMD architecture, including instructions for accelerated video and image processing
- Controller Area Network (CAN) 2.0B interface
- Two-Wire Interface Controller
- Glueless Video Capture/Display Port
- Industrial and extended industrial temperature ranges
ADSP-BF534 技术指标
- Clock Speed MHz (Max): 500MHz
- MMACS (Max): 1000
- External Memory Bus: 16bit
- PPI: Yes
- USB Device: No
- Core Voltage (V): 0.8-1.2
- Core Voltage Regulation: Yes
- Package: CSP_BGA
ADSP-BF534 市场与应用
- Automotive Safety
- Automotive Body Control
- Automotive Driver Assistance
- Automotive Entertainment
- Fleet Monitoring
- Industrial Factory Automation
- Industrial and Instrumentation
ADSP-BF534 功能框图
ADSP-BF534 型号选项
| 产品型号 | 封装 | 引脚 | 温度范围 | 包装和数量 | 报价*(100-499) | 报价*1000 pcs | RoHS |
|---|---|---|---|---|---|---|---|
| ADSP-BF534BBC-4A 产品状态: 量产 | 182 ball CSPBGA (12x12x1.7mm) | 182 | 工业 | Tray, 189 | $ 15.07 | $ 14.32 | 否 |
| ADSP-BF534BBC-5A 产品状态: 量产 | 182 ball CSPBGA (12x12x1.7mm) | 182 | 工业 | Tray, 189 | $ 18.71 | $ 17.78 | 否 |
| ADSP-BF534BBCZ-4A 产品状态: 量产 | CHIP SCALE BGA | 182 | 工业 | Tray, 189 | $ 13.04 | $ 12.40 | 是 |
| ADSP-BF534BBCZ-4B 产品状态: 量产 | CHIP SCALE BGA | 208 | 工业 | Tray, 90 | $ 13.04 | $ 12.40 | 是 |
| ADSP-BF534BBCZ-5A 产品状态: 量产 | CHIP SCALE BGA | 182 | 工业 | Tray, 189 | $ 16.20 | $ 15.39 | 是 |
| ADSP-BF534BBCZ-5B 产品状态: 量产 | CHIP SCALE BGA | 208 | 工业 | Tray, 90 | $ 16.20 | $ 15.39 | 是 |
| ADSP-BF534YBCZ-4B 产品状态: 量产 | CHIP SCALE BGA | 208 | 工业 | Tray, 90 | $ 19.34 | $ 18.53 | 是 |
ADSP-BF534 评估版和开发套件
| 产品型号 | 封装 | 引脚 | 温度范围 | 包装和数量 | 报价*(100-499) | 报价*1000 pcs | RoHS |
|---|---|---|---|---|---|---|---|
| ADZS-BF537-EZLITE 产品状态: 量产 | 评估板 | - | 商业 | 1 | $ 350.00 | $ 350.00 | 是 |

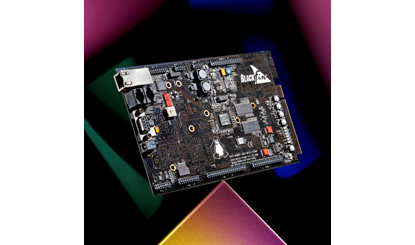

| ADZS-BF537-STAMP | 评估板 | ||||||
| ADZU-BF537-EZLITE 产品状态: 量产 | 评估板 | - | 商业 | 1 | - | - | 是 |
