ADSP-21364:面向专业音频的高精度32位浮点SHARC处理器
The third generation of SHARC(R) Processors, which includes the ADSP-21262, ADSP-21266, ADSP-21267, ADSP-21364, and ADSP-21365, offers increased performance, audio and application-focused peripherals, and memory configurations. All devices are pin-compatible and completely code-compatible with all prior SHARC Processors. These members of the SHARC Processor family are based on a single-instruction, multiple-data (SIMD) core, which supports both 32-bit fixed-point and 32-/40-bit floating-point arithmetic formats making them particularly suitable for high-end audio applications.
The ADSP-21364 offers the highest performance – 333MHz/2GFLOPs -- within the third generation SHARC Processor family. This level of performance makes the ADSP-21364 particularly well suited to address the increasing requirements of the professional audio market segment. High core performance combined with audio centric peripherals including a high-precision, 8-channel asynchronous sample rate converter makes the ADSP-21364 a very good choice in applications requiring industry-leading equalization, reverberation, and other effects processing.
Third generation SHARC Processors also integrate application-specific peripherals designed to simplify hardware design, minimize design risks, and ultimately reduce time to market. Grouped together, and broadly named the Digital Audio Interface (DAI), these functional blocks may be connected to each other or to external pins via the software-programmable Signal Routing Unit (SRU). The SRU is an innovative architectural feature that enables complete and flexible routing amongst DAI blocks. Peripherals connected through the SRU include but are not limited to serial ports, SPI ports, an Input Data Port, precision clock generators, and a high-precision 8-channel asynchronous sample rate converter functional block. This flexibility of resource utilization combined with the ease of use of the SHARC Processor programming model allow manufacturers to leverage a single hardware design for multiple products with varying I/O requirements.
成员包括ADSP-21262、ADSP-21266、ADSP-21267、ADSP-21364和ADSP-21365的第三代SHARC(R)处理器系列提供了更优越的性能、注重于音频功能与应用的外设以及新型存储器配置。这些器件均与先前推出的所有SHARC处理器引脚兼容并实现了代码全兼容。这些SHARC处理器系列的最新成员基于一个单指令、多数据（SIMD）内核（该内核支持32位定点和32/40位浮点算术格式），从而使其成为高端音频应用的绝佳选择。
在第三代SHARC处理器系列中，ADSP-21364提供了最高的性能 —— 300MHz/1800MFLOPs。这种性能水平使得ADSP-21364尤其适合于满足专业音频区段专业市场不断提高的要求。高内核性能，再加上以音频为中心的外设（包括一个高精度、8通道异步采样率转换器），使得ADSP-21364成为那些需要业界领先的均衡、混响及其他音效处理的应用的极佳选择。
第三代SHARC处理器还集成了专为简化硬件设计、实现设计风险的最小化以及最大限度地缩短产品面市时间的专用外设。这些功能模块组合在一起（被统称为数字音频接口，DAI），可以彼此相连，也可以通过软件可编程信号路由单元（SRU）连接至外部引脚。SRU是一种创新型架构特点，可在DAI部件之间实现全面而灵活的路由。通过SRU连接的外设包括（但不限于）串行端口、SPI端口、一个输入数据端口、精确时钟发生器和一个高精度8通道异步采样率转换器功能模块。这种资源利用的灵活性，再加上SHARC处理器编程模型的易用性，使得制造商能够将一种硬件设计应用于多种具有不同I/O要求的产品中。
ADSP-21364 特点
- 333MHz /2GFLOPs SIMD SHARC core supporting IEEE 32-bit floating-point, 40-bit floating-point and 32-bit fixed-point data types
- 3Mbits SRAM
- 23 zero-overhead DMA channels
- High-precision 8-channel asynchronous sample rate converter based on the award-winning AD1896
- Digital Audio Interface (DAI) enabling user-definable access to peripherals including an input data port (IDP) and general purpose I/O
- 6 serial ports (SPORTs) supporting I2S, left-justified sample pair, and TDM modes
- 2 SPI-compatible ports supporting master and slave modes
- 16 Pulse Width Modulation (PWM) channels
- 3 full-featured timers
- PLL capable of 1x to 32x frequency multiplication
- 136-ball MBGA and 144-Ld LQFP E-Pad package options
- Commercial temperature range
- 300MHz /1.8 GFLOPs SIMD SHARC核，支持IEEE 32位浮点、40位浮点和32位定点数据类型
- 3Mbit SRAM
- 25个零开销DMA通道
- 基于获奖产品AD1896的高精度8通道异步采样率转换器
- 数字音频接口(DAI)，可以实现用户可定义的外设访问，包括输入数据端口(IDP)和通用I/O
- 6个支持I2S的串行端口(SPORT)，左对齐采样对模式和TDM模式
- 2个SPI兼容端口，支持主/从模式
- 16个脉冲宽度调制(PWM)通道
- 3个功能完备的定时器
- 可进行1x -32x倍频的PLL
- 136焊球MiniBGA封装
- 商用温度范围
ADSP-21364 技术指标
- Clock Speed (MHz): 333MHz
- MMACs: 666
- On-Chip SRAM (Mbits): 3Mbit
- Serial Ports: 6
- DAI: X
- Package: CSP_BGA,LQFP-EP
- Sample Rate Converters: X
ADSP-21364 市场与应用
- Automotive Audio
- Consumer Home Theater
- Industrial and Instrumentation
- Digital Audio Amplifiers
- Professional Audio
- 汽车音频
- 消费类家庭影院
- 数字音频放大器
- 专业音频

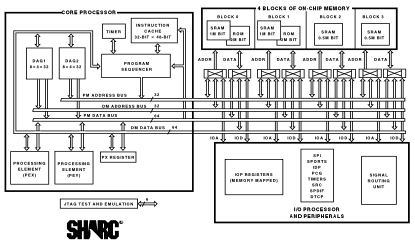

ADSP-21364 功能框图
ADSP-21364 芯片订购指南
| 产品型号 | 封装 | 引脚 | 温度范围 | 包装和数量 | 报价*(100-499) | 报价*1000 pcs | RoHS |
|---|---|---|---|---|---|---|---|
| ADSP-21364BBC-1AA 产品状态: 停产 | CHIP SCALE BGA | 136 | 工业 | Tray, 189 | - | - | 否 |
| ADSP-21364BBCZ-1AA 产品状态: 量产 | CHIP SCALE BGA | 136 | 工业 | Tray, 189 | $ 38.82 | $ 35.70 | 是 |
| ADSP-21364BSWZ-1AA 产品状态: 量产 | 144 ld LQFP-EP (20X20mm w/8.8mm Exposed Pad) | 144 | 工业 | Tray, 60 | $ 46.57 | $ 42.85 | 是 |
| ADSP-21364KBC-1AA 产品状态: 停产 | CHIP SCALE BGA | 136 | 商业 | Tray, 189 | - | - | 否 |
| ADSP-21364KBCZ-1AA 产品状态: 量产 | CHIP SCALE BGA | 136 | 商业 | Tray, 189 | $ 32.34 | $ 29.75 | 是 |
| ADSP-21364KSWZ-1AA 产品状态: 量产 | 144 ld LQFP-EP (20X20mm w/8.8mm Exposed Pad) | 144 | 商业 | Tray, 60 | $ 38.82 | $ 35.70 | 是 |
| ADSP-21364YSWZ-2AA 产品状态: 量产 | 144 ld LQFP-EP (20X20mm w/8.8mm Exposed Pad) | 144 | 工业 | Tray, 60 | $ 46.57 | $ 42.85 | 是 |
ADSP-21364 评估版和开发套件
| 产品型号 | 封装 | 引脚 | 温度范围 | 包装和数量 | 报价*(100-499) | 报价*1000 pcs | RoHS |
|---|---|---|---|---|---|---|---|
| ADZS-21364-EZLITE 产品状态: 量产 | 评估板 | - | 商业 | 1 | $ 500.00 | $ 500.00 | 是 |
| ADZU-21364-EZLITE 产品状态: 量产 | 评估板 | - | 商业 | 1 | - | - | 是 |
