ADR130: Precision Series Sub-Band Gap Voltage Reference

The ADR130 is the industry's first family of tiny, micropower, low voltage, high precision voltage references. Featuring 0.35% initial accuracy and 25 ppm/°C of temperature drift in the tiny TSOT-23 package, the ADR130 voltage reference only requires 80 μA for typical operation. The ADR130 design includes a patented temperature drift curvature correction technique that minimizes the nonlinearities in the output voltage vs. temperature characteristics.

Available in the industrial temperature range of -40°C to +125°C, the ADR130 is housed in a tiny TSOT-23 package.

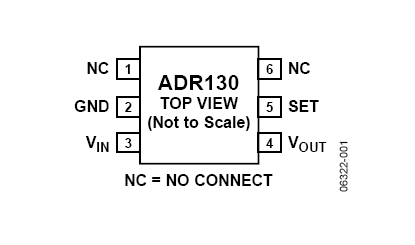

For 0.5 V output, tie SET (Pin 5) to VOUT (Pin 4). For 1.0 V output, tie SET (Pin 5) to GND (Pin 2).

产品应用领域 Applications

Battery-powered instrumentation
Portable medical equipment
Communication infrastructure equipment

ADR130 特点

Initial accuracy
A Grade: ±0.70% (maximum)
B Grade: ±0.35% (maximum)
Maximum temperature coefficient
A Grade: 50 ppm/°C
B-Grade: 25 ppm/°C
CLOAD = 50 nF to 10 uF
Output current: +4 mA/-2 mA
Low operating current: 80 uA (typical)
Output noise: 6 uV p-p @ 1.0 V output
Input range: 2.0 V to 18 V
Temperature range: -40°C to +125°C
Tiny, Pb-free TSOT-23 package

ADR130 功能框图

ADR130 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
ADR130AUJZ-R2	量产	6 ld TSOT	6	工业
ADR130AUJZ-REEL7	量产	6 ld TSOT	6	工业
ADR130BUJZ-R2	量产	6 ld TSOT	6	工业
ADR130BUJZ-REEL7	量产	6 ld TSOT	6	工业
