ADR127: Precision, Micropower LD0 Voltage Reference in TSOT (1.25 VOUT)
The ADR121/ADR125/ADR127 are a family of micropower, high precision, series mode, band gap references with sink and source capability. The parts feature high accuracy and low power consumption in a tiny package. The ADR12x design includes a patented temperature-drift curvature correction technique that minimizes the nonlinearities in the output voltage vs. temperature characteristics.
The ADR12x is a low dropout voltage reference, requiring only 300 mV for ADR121/ADR125 and 1.45 V for ADR127 above the nominal output voltage on the input to provide a stable output voltage. This low dropout performance, coupled with the low 85 μA operating current, makes the ADR12x ideal for battery-powered applications.
Available in an extended industrial temperature range of -40°C to +125°C, the ADR121/ADR125/ADR127 are housed in the tiny TSOT (UJ-6) package.
产品应用领域 Applications
- Battery-powered instrumentation
- Portable medical equipment
- Data acquisition systems
- Automotive
ADR127 特点
- Initial accuracy
A grade: ±0.24%
B grade: ±0.12% - Maximum temperature coefficient
A grade: 25 ppm/°C
B grade: 9 ppm/°C - Low dropout: 300 mV for ADR121, ADR125
- High output current: +5 mA/-2 mA
- Low typical operating current: 85 μA
- Input range: 2.7 V to 18 V for ADR127
- Temperature range: -40°C to +125°C
- Tiny TSOT (UJ-6) package

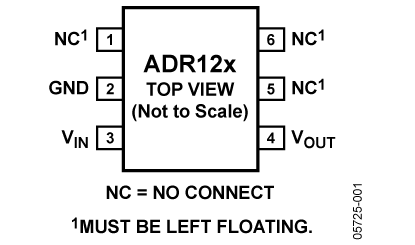

ADR127 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADR127AUJZ-R2 | 量产 | 6 ld TSOT | 6 | 工业 |
| ADR127AUJZ-REEL7 | 量产 | 6 ld TSOT | 6 | 工业 |
| ADR127BUJZ-REEL7 | 量产 | 6 ld TSOT | 6 | 工业 |
