ADN2813
The ADN2813 provides the receiver functions of quantization, signal level detect, and clock and data recovery for continuous data rates from 12.3 Mb/s to 1.25 Gb/s. The ADN2813 automatically locks to all data rates without the need for an external reference clock or programming. All SONET jitter requirements are met, including jitter transfer, jitter generation, and jitter tolerance. All specifications are quoted for -40°C to +85°C ambient temperature, unless otherwise noted.
This device, together with a PIN diode and a TIA preamplifier, can implement a highly integrated, low cost, low power fiber optic receiver.
The receiver front end loss of signal (LOS) detector circuit indicates when the input signal level has fallen below a useradjustable threshold. The LOS detect circuit has hysteresis to prevent chatter at the output.
The ADN2813 is available in a compact 5 mm × 5 mm 32-lead chip scale package.
产品应用领域 Applications
- SONET OC-1/3/12 and all associated FEC rates
- Fibre Channel, GbE, HDTV, etc.
- WDM transponders
- Regenerators/repeaters
- Test equipment
- Broadband cross-connects and routers
ADN2813 特点
- Serial data input: 12.3 Mb/s to 1.25 Gb/s
- Exceeds SONET requirements for jitter transfer/generation/tolerance
- Quantizer sensitivity: 6 mV typical
- Adjustable slice level: ±100 mV
- Patented clock recovery architecture
- Loss of signal (LOS) detect range: 3 mV to 15 mV
- Independent slice level adjust and LOS detector
- No reference clock required
- Loss of lock indicator
- I^2C(R) interface to access optional features
- Single-supply operation: 3.3 V
- Low power: 350 mW typical

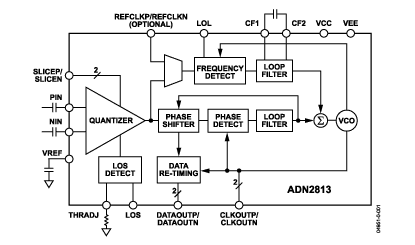

ADN2813 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADN2813ACPZ | 量产 | 32 ld LFCSP (5x5mm CP-32-2) | 32 | 商业 |
| ADN2813ACPZ-500RL7 | 量产 | 32 ld LFCSP (5x5mm CP-32-2) | 32 | 商业 |
| ADN2813ACPZ-RL7 | 量产 | 32 ld LFCSP (5x5mm CP-32-2) | 32 | 商业 |
| EVAL-ADN2813EB | 量产 | 评估板 | - | 工业 |
| EVAL-ADN2813EBZ | 量产 | 评估板 | - | 待定 |
