ADN2805: 1.25 Gbps Clock and Data Recovery IC
The ADN2805 provides the receiver functions of quantization and clock and data recovery for 1.25 Gbps. The ADN2805 automatically locks to all data rates without the need for an external reference clock or programming. All SONET jitter requirements are met, including jitter transfer, jitter generation, and jitter tolerance.
All specifications are specified for -40°C to +85°C ambient temperature, unless otherwise noted. The ADN2805 is available in a compact 5 mm × 5 mm 32-lead LFCSP.
产品应用领域 Applications
- GbE line card
ADN2805 特点
- Locks to 1.25 Gbps NRZ serial data input
- Patented clock recovery architecture
- No reference clock required
- Loss-of-lock indicator
- I^2C interface to access optional features
- Single-supply operation: 3.3 V
- Low power: 390 mW typical
- 5 mm × 5 mm 32-lead LFCSP, Pb free

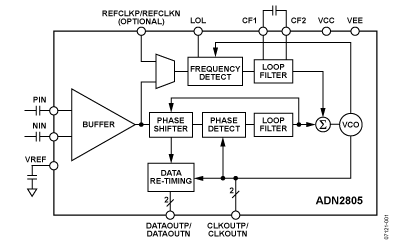

ADN2805 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADN2805ACPZ | 量产 | 32 ld LFCSP (5x5mm CP-32-2) | 32 | 商业 |
| ADN2805ACPZ-500RL7 | 量产 | 32 ld LFCSP (5x5mm CP-32-2) | 32 | 商业 |
| ADN2805ACPZ-RL7 | 量产 | 32 ld LFCSP (5x5mm CP-32-2) | 32 | 商业 |
| EVAL-ADN2805EBZ | 量产 | EVALUATION BOARDS | - | 工业 |
