The ADL5373 is a member of the fixed-gain quadrature modulator (F-MOD) family designed for use from 2300 MHz to 3000 MHz. Its excellent phase accuracy and amplitude balance enable high performance intermediate frequency or direct radio frequency modulation for communications systems.
The ADL5373 provides a >500 MHz, 3 dB baseband bandwidth, making it ideally suited for use in broadband zero IF or low IF-to-RF applications and in broadband digital predistortion transmitters.
The ADL5373 accepts two differential baseband inputs that are mixed with a local oscillator (LO) to generate a single- ended output.
The ADL5373 is fabricated using the Analog Devices, Inc. advanced silicon-germanium bipolar process. It is available in a 24-lead, exposed paddle, Pb-free LFCSP. Performance is specified over a -40°C to +85°C temperature range. A Pb-free evaluation board is available.
产品应用领域 Applications
- WiMAX/broadband wireless access systems
- Satellite modems
ADL5373 特点
- Output frequency range: 2300 MHz to 3000 MHz
- Modulation bandwidth: >500 MHz (3 dB)
- 1 dB output compression: 13.8 dBm @ 2500 MHz
- Noise floor: -157.1 dBm/Hz @ 2500 MHz
- Sideband suppression: -57 dBc @ 2500 MHz
- Output third-order intercept: 26 dBm @ 2500 MHz
- Carrier feedthrough: -32 dBm @ 2500 MHz
- Single supply: 4.75 V to 5.25 V
- 24-lead LFCSP

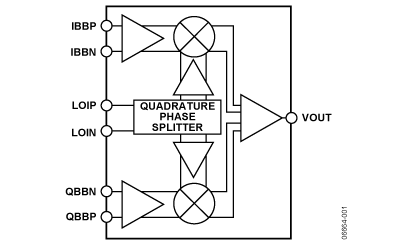

ADL5373 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADL5373-EVALZ | 量产 | 评估板 | 24 | 工业 |
| ADL5373ACPZ-R7 | 量产 | 24 ld LFCSP (4x4mm w/2.30mm EP) | 24 | 工业 |
| ADL5373ACPZ-WP | 量产 | 24 ld LFCSP (4x4mm w/2.30mm EP) | 24 | 工业 |
