ADIS16130: Digital Output, High-Precision Angular Rate Sensor
The ADIS16130 is a low noise, digital output angular rate sensor (gyroscope) that provides an output response over the complete dynamic range of ±250o/sec.
Its industry-standard serial interface and register structure provide a simple interface that is supported by most MCU, DSP, and FPGA platforms.
By implementing a unique design, the device provides superior stability over variations in temperature, voltage, linear acceleration, vibration, and next-level assembly. In addition, the surface-micro-machining technology used to manufacture the device is the same high volume BiMOS process used by Analog Devices, Inc., for its high reliability automotive sensor products.
Features include a temperature output that provides critical information for system-level calibrations and a digital self-test feature that exercises the mechanical structure of the sensor and enables system-level diagnostics.
The package configuration is a 36 mm × 44 mm × 16 mm module with a standard 24-lead connector interface.
产品应用领域 Applications
- Guidance and control
- Instrumentation
- Inertial measurement units (IMU)
- Platform stabilization
- Navigation
ADIS16130 特点
- Low noise density, 0.0125°/sec/√Hz
- Industry-standard serial peripheral interface (SPI)
- 24-bit digital resolution
- Dynamic range: ±250°/sec
- Z-axis, yaw rate response
- Bandwidth, adjustable: 300 Hz
- Turn-on time: 35 ms
- Digital self-test
- High vibration rejection
- High shock survivability
- Embedded temperature sensor output
- Precision voltage reference output

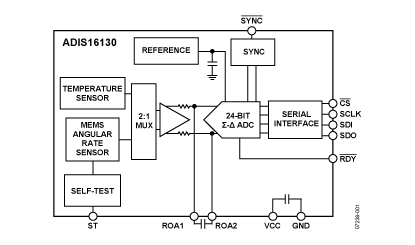

ADIS16130 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADIS16130AMLZ | 量产 | MSM LAMINATE | 24 | 工业 |
