ADIS16060: Wide Bandwidth Yaw Rate Gyroscope with SPI
The ADIS16060 is a yaw rate gyroscope with an integrated serial peripheral interface (SPI). It features an externally selectable bandwidth response and scalable dynamic range.
The SPI port provides access to the rate sensor, an internal temperature sensor, and two external analog signals (using internal ADC). The digital data available at the SPI port is proportional to the angular rate about the axis that is normal to the top surface of the package.
An additional output pin provides a precision voltage reference. A digital self-test function electromechanically excites the sensor to test the operation of the sensor and the signal-conditioning circuits.
The ADIS16060 is available in an 8.2 mm × 8.2 mm × 5.2 mm, 16-terminal, peripheral land grid array (LGA) package.
Applications:
- Platform stabilization
- Image stabilization
- Guidance and control
- Inertial measurement units
- Robotics
ADIS16060 特点
- Complete angular rate digital gyroscope
- 14-bit resolution
- Scalable measurement range
- Initial range: ±80°/sec (typical)
- Increase range with external resistor
- Z-axis (yaw rate) response
- SPI digital output interface
- High vibration rejection over wide frequency
- 5 V single-supply operation
- 8.2 mm × 8.2 mm × 5.2 mm package
- 2000 g-powered shock survivability
- 1 kHz bandwidth
- Selectable using external capacitor
- Externally controlled self-test
- Internal temperature sensor output
- Dual auxiliary 14-bit ADC inputs
- Absolute rate output for precision applications
- RoHS compliant
- -40°C to +105°C operation

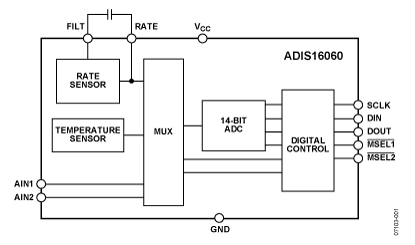

ADIS16060 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADIS16060/PCBZ | 量产 | 评估板 | - | 待定 |
| ADIS16060BCCZ | 量产 | LGA/CASON/CH ARRY SO NO LD | 16 | 工业 |
