ADG734: CMOS, 2.5 Ω Low Voltage, Quad SPDT Switch

The ADG734 is a low voltage, CMOS device comprising four independently selectable SPDT switches. Low power consumption and operating supply range of +1.8 V to +5.5 V and dual +/-3 V make the ADG734 ideal for battery powered, portable instruments. All channels exhibit break before make switching action preventing momentary shorting when switching channels.

ADG734 特点

• 1.8 V to 5.5 V Single Supply
• ±2.5 V Dual Supply
• 2.5 O On Resistance
• 0.5 O On Resistance Flatness
• 100 pA Leakage Currents
• 19 ns Switching Times
• Triple SPDT: ADG733
• Quad SPDT: ADG734
• Small TSSOP and QSOP Packages
• Low Power Consumption
• TTL/CMOS Compatible Inputs

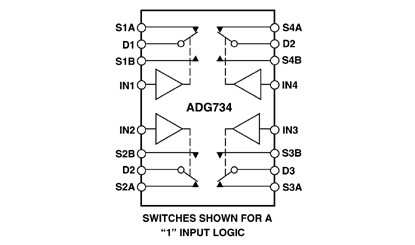

ADG734 功能框图

ADG734 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
ADG734BRU	量产	20 ld TSSOP	20	工业
ADG734BRU-REEL	量产	20 ld TSSOP	20	工业
ADG734BRU-REEL7	量产	20 ld TSSOP	20	工业
ADG734BRUZ	量产	20 ld TSSOP	20	工业
ADG734BRUZ-REEL	量产	20 ld TSSOP	20	工业
ADG734BRUZ-REEL7	量产	20 ld TSSOP	20	工业
