ADG723: CMOS, Low Voltage, 4 Ω Dual SPST Switch in 3 mm × 2 mm LFCSP

The ADG721, ADG722, and ADG723 are monolithic CMOS SPST switches. These switches are designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents. The devices are packaged in both a tiny 3 mm × 2 mm LFCSP and an MSOP, making them ideal for space-constrained applications.

The ADG721, ADG722, and ADG723 are designed to operate from a single 1.8 V to 5.5 V supply, making them ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.

The ADG721, ADG722, and ADG723 contain two independent single-pole/single-throw (SPST) switches. The ADG721 and ADG722 differ only in that both switches are normally open and normally closed, respectively. In the ADG723, Switch 1 is normally open and Switch 2 is normally closed.

Each switch of the ADG721, ADG722, and ADG723 conducts equally well in both directions when on. The ADG723 exhibits break-before-make switching action.

Product Highlights

1.8 V to 5.5 V single-supply operation.
Very low RON (4 Ω max at 5 V, 10 Ω max at 3 V).
Low on resistance flatness.
-3 dB bandwidth >200 MHz.
Low power dissipation. CMOS construction ensures low power dissipation.
8-lead MSOP and 3 mm × 2 mm LFCSP.

产品应用领域 Applications

USB 1.1 signal switching circuits
Cell phones
PDAs
Battery-powered systems
Communication systems
Sample hold systems
Audio signal routing
Video switching
Mechanical reed relay replacement

ADG723 特点

1.8 V to 5.5 V single supply
Low on resistance flatness
-3 dB bandwidth
>200 MHz
Tiny package options
8-lead MSOP
3 mm × 2 mm LFCSP (A grade)
4 Ω (max) on resistance
Fast switching times
TON 20 ns
TOFF 10 ns
Low power consumption (<0.1 μW)
TTL/CMOS compatible

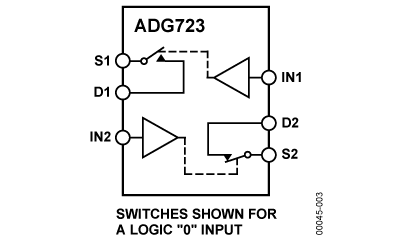

ADG723 功能框图

ADG723 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
ADG723ACPZ-REEL	量产	8 ld LFCSP (3x2x.75mm)	8	工业
ADG723ACPZ-REEL7	量产	8 ld LFCSP (3x2x.75mm)	8	工业
ADG723BRM	量产	8 ld MSOP	8	工业
ADG723BRM-REEL	量产	8 ld MSOP	8	工业
ADG723BRM-REEL7	量产	8 ld MSOP	8	工业
ADG723BRMZ	量产	8 ld MSOP	8	工业
ADG723BRMZ-REEL	量产	8 ld MSOP	8	工业
ADG723BRMZ-REEL7	量产	8 ld MSOP	8	工业
