ADG704: CMOS, Low Voltage 2.5 Ω 4-Channel Multiplexer
The ADG704 is a CMOS analog multiplexer, comprising four single channels. This multiplexer is designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and high bandwidths. The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching.
ADG704 特点
- +1.8 V to +5.5 V Single Supply
- 2.5 Ω (Typ) On Resistance
- Low On-Resistance Flatness
- –3 dB Bandwidth >200 MHz
- Rail-to-Rail Operation
- 10-Lead uSOIC Package
- Fast Switching Times
tON 20 ns
tOFF 13 ns - Typical Power Consumption (<0.01 uW)
- TTL/CMOS Compatible

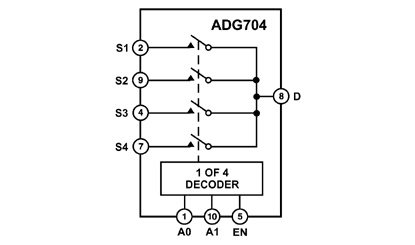

ADG704 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADG704BRM | 量产 | 10 ld MSOP | 10 | 工业 |
| ADG704BRM-REEL | 量产 | 10 ld MSOP | 10 | 工业 |
| ADG704BRM-REEL7 | 量产 | 10 ld MSOP | 10 | 工业 |
| ADG704BRMZ | 量产 | 10 ld MSOP | 10 | 工业 |
| ADG704BRMZ-REEL | 量产 | 10 ld MSOP | 10 | 工业 |
| ADG704BRMZ-REEL7 | 量产 | 10 ld MSOP | 10 | 工业 |
