ADG608: LC2MOS ± 5V 8-Channel High Performance Analog Multiplexer
The ADG608 is a monolithic CMOS analog multiplexer comprising 8 single channels. The ADG608 switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1 and A2. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched OFF.
The ADG608 is designed on an enhanced LC2 MOS process, which provides low power dissipation yet gives high switching speed and low on resistance. Each channel conducts equally well in both directions when ON and has an input signal range which extends to the supplies. In the OFF condition, signal levels up to the supplies are blocked. All channels exhibit break before make switching action preventing momentary shorting when switching channels. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
ADG608 特点
- +3 V, +5 V, ±5 V Power Supplies
- VSS to VDD Analog Signal Range
- Low On-Resistance (30 O max)
- Fast Switching Times
ton 75 ns max
toff 45 ns max - Low Power Dissipation (1.5uW max)
- Break-Before-Make Switching Action
- ESD > 5000V as per Military Standard 3015.7
- TTL/CMOS Compatible
- 16-Lead DIP/SOIC/TSSOP Packages

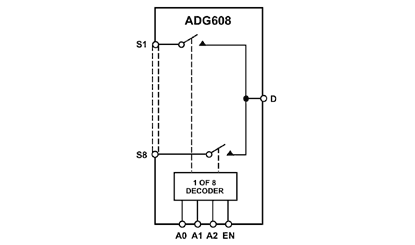

ADG608 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADG608BN | 量产 | 16 ld PDIP | 16 | 工业 |
| ADG608BNZ | 量产 | 16 ld PDIP | 16 | 工业 |
| ADG608BR | 量产 | 16 ld SOIC | 16 | 工业 |
| ADG608BR-REEL | 量产 | 16 ld SOIC | 16 | 工业 |
| ADG608BRU | 量产 | 16 ld TSSOP | 16 | 工业 |
| ADG608BRU-REEL7 | 量产 | 16 ld TSSOP | 16 | 工业 |
| ADG608BRUZ | 量产 | 16 ld TSSOP | 16 | 工业 |
| ADG608BRUZ-REEL7 | 量产 | 16 ld TSSOP | 16 | 工业 |
| ADG608BRZ | 量产 | 16 ld SOIC | 16 | 工业 |
| ADG608BRZ-REEL | 量产 | 16 ld SOIC | 16 | 工业 |
| ADG608TRU | 量产 | 16 ld TSSOP | 16 | 军用 |
| ADG608TRU-REEL7 | 量产 | 16 ld TSSOP | 16 | 军用 |
| ADG608TRUZ | 量产 | 16 ld TSSOP | 16 | 军用 |
| ADG608TRUZ-REEL | 量产 | 16 ld TSSOP | 16 | 军用 |
| ADG608TRUZ-REEL7 | 量产 | 16 ld TSSOP | 16 | 军用 |
