ADG411: LC2MOS Precision Quad SPST Switch

The ADG411 is a monolithic CMOS device comprising four independently selectable switches. It is designed on an enhanced LC2MOS process which provides low power dissipation yet gives high switching speed and low on resistance.

The ADG411 switches are turned on with a logic low on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

ADG411 特点

44 V Supply Maximum Ratings
± 15 V Analog Signal Range
Low On-Resistance (< 35 Ohm)
Ultralow Power Dissipation (<35 uW )
Rail-to-Rail Switching Operation
TTL/CMOS-Compatible Inputs
Fast Switching Times
- tON <175 ns
- tOFF <145 ns
Plug-In Replacement for DG411/DG412/DG413
16-Lead DIP and SOIC Packages

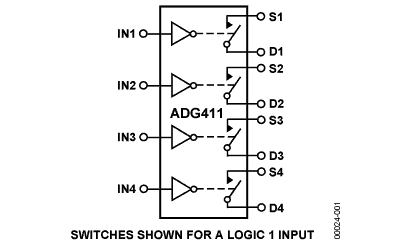

ADG411 功能框图

ADG411 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
ADG411BCHIPS	量产	CHIPS OR DIE	-	待定
ADG411BN	量产	16 ld PDIP	16	工业
ADG411BNZ	量产	16 ld PDIP	16	工业
ADG411BR	量产	16 ld SOIC	16	工业
ADG411BR-REEL	量产	16 ld SOIC	16	工业
ADG411BR-REEL7	量产	16 ld SOIC	16	工业
ADG411BRU	量产	16 ld TSSOP	16	工业
ADG411BRU-REEL	量产	16 ld TSSOP	16	工业
ADG411BRU-REEL7	量产	16 ld TSSOP	16	工业
ADG411BRUZ	量产	16 ld TSSOP	16	工业
ADG411BRUZ-REEL	量产	16 ld TSSOP	16	工业
ADG411BRUZ-REEL7	量产	16 ld TSSOP	16	工业
ADG411BRZ	量产	16 ld SOIC	16	工业
ADG411BRZ-REEL	量产	16 ld SOIC	16	工业
ADG411BRZ-REEL7	量产	16 ld SOIC	16	工业
