ADG3300: Low Voltage 1.15 V to 5.5 V, 8-Channel Bidirectional Logic Level Translator

The ADG3300 is a bidirectional logic level translator that con-tains eight bidirectional channels. It can be used in multivoltage digital system applications such as data transfer between a low voltage DSP/controller and a higher voltage device. The internal architecture allows the device to perform bidirectional logic level translation without an additional signal to set the direction of the translation.

The voltage applied to VCCA sets the logic levels on the A side of the device, while VCCY sets the levels on the Y side. For proper operation, VCCA must always be less than VCCY. The VCCA-compatible logic signals applied to the A side of the device appear as VCCY-compatible levels on the Y side. Similarly, VCCY-compatible logic levels applied to the Y side of the device appear as VCCA-compatible logic levels on the A side.

The enable pin provides three-state operation of the Y side pins. When the enable pin (EN) is pulled low, the A1 to A8 pins are internally pulled down by 6 kΩ resistors, while the Y terminals are in the high impedance state. The EN pin is referred to VCCA supply voltage and driven high for normal operation.

The ADG3300 is available in a compact 20-lead TSSOP package, and it is guaranteed to operate over the 1.15 V to 5.5 V supply voltage range and extended -40°C to +85°C temperature range.

Applications

Low Voltage ASIC Level Translation
Smart Card Readers
Cell Phones and Cell Phone Cradles
Portable Communications Devices
Telecommunications Equipment
Network Switches and Routers
Storage Systems (SAN/NAS)
Computing/Server Applications
GPS
Portable POS Systems
Low Cost Serial Interfaces

ADG3300 特点

Bidirectional Level Translation
Operates from 1.15 V to 5.5 V
Low Quiescent Current <1 μA
No Direction Pin

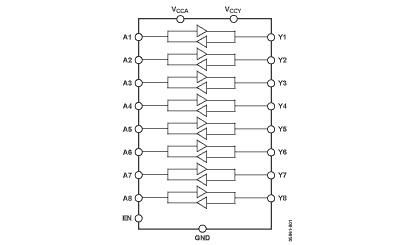

ADG3300 功能框图

ADG3300 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
ADG3300BRUZ	量产	20 ld TSSOP	20	工业
ADG3300BRUZ-REEL	量产	20 ld TSSOP	20	工业
ADG3300BRUZ-REEL7	量产	20 ld TSSOP	20	工业
