ADG3257: High Speed, 3.3 V/5 V Quad 2:1 Mux/Demux (4-Bit, 1 of 2) Bus Switch
The ADG3257 is a CMOS bus switch comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The device is manufactured on a CMOS process, which provides low power dissipation yet gives high switching speed and very low on resistance allowing the inputs to be connected to the outputs without adding propagation delay or generating additional ground bounce noise.
The ADG3257 operates from a single 3.3 V/5 V supply. The control logic for each switch is shown in the Truth Table in the data sheet. These switches are bi-directional when ON. In the OFF condition, signal levels up to the supplies are blocked.
This Bus Switch is suited to both switching and level translation application. It may be used in applications requiring level translation from 3.3 V to 2.5V when powered from 3.3 V. Additionally, with a diode connected in series with 5 V VDD, the ADG3257 may also be used in applications requiring 5 V to 3.3 V level translation.
ADG3257 特点
- 100 ps Propagation Delay through the Switch
- 2 Ω Max Switches Connect Inputs to Outputs
- Data Rates up to 933 Mbps
- Single 3.3 V/5 V Supply Operation
- Level Translation Operation
- Ultralow Quiescent Supply Current (1 nA Typical)
- 3.5 ns Switching
- Standard '3257 Type Pinout

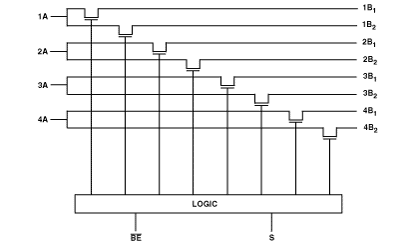

ADG3257 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| ADG3257BRQ | 量产 | 16 ld QSOP | 16 | 工业 |
| ADG3257BRQ-REEL | 量产 | 16 ld QSOP | 16 | 工业 |
| ADG3257BRQ-REEL7 | 量产 | 16 ld QSOP | 16 | 工业 |
| ADG3257BRQZ | 量产 | 16 ld QSOP | 16 | 工业 |
| ADG3257BRQZ-REEL | 量产 | 16 ld QSOP | 16 | 工业 |
| ADG3257BRQZ-REEL7 | 量产 | 16 ld QSOP | 16 | 工业 |
