ADG3241: 2.5 V/3.3 V, 1 - Bit, 2 - Port Level Translator Bus Switch

The ADG3241 is a 2.5 V or 3.3 V, single digital switch. It is designed on a low voltage CMOS process, which provides low power dissipation yet gives high switching speed and very low on resistance. This allows the input to be connected to the output without additional propagation delay or generating additional ground bounce noise.

ADG3241 特点

• 225 ps Propagation Delay through the Switch
• 4.5 Ω Switch Connection between Ports
• Data Rate 1.5 Gbps
• 2.5 V/3.3 V Supply Operation
• Selectable Level Shifting/Translation
• Level Translation
  - 3.3 V to 2.5 V
  - 3.3 V to 1.8 V
  - 2.5 V to 1.8 V
• Small Signal Bandwidth 770 MHz
• 6-Lead SC70 Package

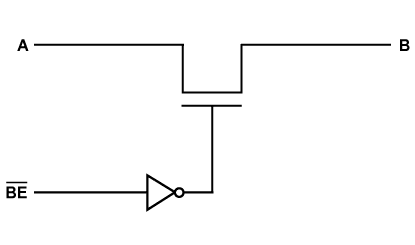

ADG3241 功能框图

ADG3241 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
ADG3241BKSZ-500RL7	量产	6 ld SC70	6	工业
ADG3241BKSZ-REEL	量产	6 ld SC70	6	工业
ADG3241BKSZ-REEL7	量产	6 ld SC70	6	工业
