ADG202A: LC2MOS ±15V Quad SPST Switch

The ADG202A is a monolithic CMOS device comprising four independently selectable switches. They are designed on an enhanced LC2MOS process, which gives an increased signal handling capability of ±15 V. These switches also feature high switching speeds and low RON.

The ADG202A switches are turned on with a logic high on the appropriate control input. Each switch conducts equally well in both directions when ON and each has an input signal range that extends to the supplies. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

ADG202A 特点

• 44 V Supply Maximum Ratings
• ±15 V Analog Signal Range
• Low On-Resistance (60 O max)
• Low Leakage (0.5 nA typ)
• Extended Plastic Temperature Range (-40°C to +85°C)
• Break-Before-Make Switching Action
• Low Power Dissipation (33 mW)
• TTL/CMOS Compatible
• Superior Second Source for DG202
• 16-Lead DIP/SOIC Packages

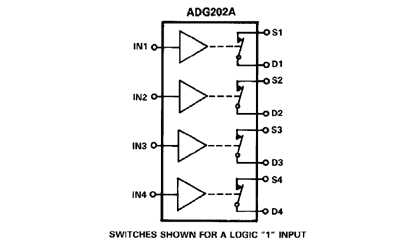

ADG202A 功能框图

ADG201A 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
ADG202ABQ	量产	16 ld CerDIP	16	工业
ADG202AKNZ	量产	16 ld PDIP	16	商业
ADG202AKP-REEL	量产	20 ld PLCC	20	商业
ADG202AKR	量产	16 ld SOIC	16	商业
ADG202AKRZ	量产	16 ld SOIC	16	商业
ADG202AKRZ-REEL	量产	16 ld SOIC	16	商业
ADG202AKRZ-REEL7	量产	16 ld SOIC	16	商业
ADG202ATQ	量产	16 ld CerDIP	16	军用
ADG202ATQ/883B	量产	16 ld CerDIP	16	军用
