ADG1212: Low Capacitance, Low Charge Injection, ±15 V/+12 V iCMOS Quad SPST Switch

The ADG1212 is a monolithic complementary metal-oxide semiconductor (CMOS) devices containing four independently selectable switches designed on an iCMOS(R) (industrial CMOS) process. iCMOS is a modular manufacturing process combining high voltage CMOS and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts has been able to achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.

The ultralow capacitance and charge injection of these switches make them ideal solutions for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed coupled with high signal bandwidth make the parts suitable for video signal switching. iCMOS construction ensures ultralow power dissipation, making the parts ideally suited for portable and battery-powered instruments.

The ADG1211/ADG1212/ADG1213 contain four independent single-pole/single-throw (SPST) switches. The ADG1211 and ADG1212 differ only in that the digital control logic is inverted. The ADG1211 switches are turned on with Logic 0 on the appropriate control input, while Logic 1 is required for the ADG1212. The ADG1213 has two switches with digital control logic similar to that of the ADG1211; the logic is inverted on the other two switches. The ADG1213 exhibits break-before-make switching action for use in multiplexer applications. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.

Applications

• Automatic test equipment
• Data acquisition systems
• Battery-powered systems
• Sample-and-hold systems
• Audio signal routing
• Video signal routing
• Communication systems

ADG1212 特点

• 1 pF off capacitance
• 2.6 pF on capacitance
• <1 pC charge injection
• 33 V supply range
• 120 Ω on resistance
• Fully specified at ±15 V, +12 V
• No VL Supply required
• 3 V Logic Compatible Inputs
• Rail - to - Rail Operation
• 16 - Lead TSSOP and 16-lead LFCSP
• Typical Power Consumption (<0.03uW)

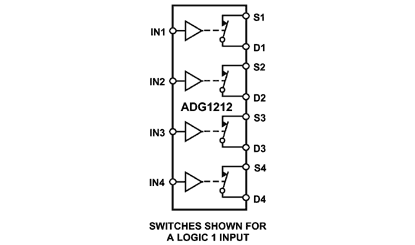

ADG1212 功能框图

ADG1212 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
ADG1212YCPZ-500RL7	量产	16 ld LFCSP (3x3mm, 1.50mm exposed pad)	16	工业
ADG1212YCPZ-REEL7	量产	16 ld LFCSP (3x3mm, 1.50mm exposed pad)	16	工业
ADG1212YRU-U2	量产	16 ld TSSOP	16	工业
ADG1212YRUZ	量产	16 ld TSSOP	16	工业
ADG1212YRUZ-REEL	量产	16 ld TSSOP	16	工业
ADG1212YRUZ-REEL7	量产	16 ld TSSOP	16	工业
