ADF4002: Phase Detector / PLL Frequency Synthesizer

The ADF4002 frequency synthesizer is used to implement local oscillators in the up-conversion and down-conversion sections of wireless receivers and transmitters. It consists of a low-noise digital phase frequency detector (PFD), a precision charge pump, a programmable reference divider and programmable N divider. The 14-bit reference counter (R counter), allows selectable REFIN frequencies at the PFD input.

A complete phase-locked loop (PLL) can be implemented if the synthesizer is used with an external loop filter and voltage controlled oscillator (VCO). In addition, by programming R & N to 1, the part can be used as a stand alone PFD and charge pump.

ADF4002 特点

• 400 MHz bandwidth
• 2.7 to 3.3 V power supply
• Separate charge pump supply (VP) allows extended tuning voltage in 3 V systems
• Programmable charge pump currents
• 3-wire serial interface
• Analog and digital lock detect
• Hardware and software power-down mode
• 200 MHz phase detector

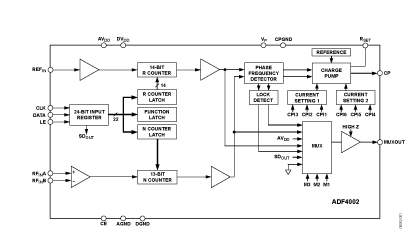

ADF4002 功能框图

ADF4002 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
ADF4002BCPZ	量产	20 ld LFCSP (4x4mm)	20	工业
ADF4002BCPZ-RL	量产	20 ld LFCSP (4x4mm)	20	工业
ADF4002BCPZ-RL7	量产	20 ld LFCSP (4x4mm)	20	工业
ADF4002BRUZ	量产	16 ld TSSOP	16	工业
ADF4002BRUZ-RL	量产	16 ld TSSOP	16	工业
ADF4002BRUZ-RL7	量产	16 ld TSSOP	16	工业
EVAL-ADF4002EBZ1	量产	评估板	-	待定
