AD9200:10位、20 MSPS、80 mW CMOS ADC

AD9200: 10位、20 MSPS、80 mW CMOS ADC

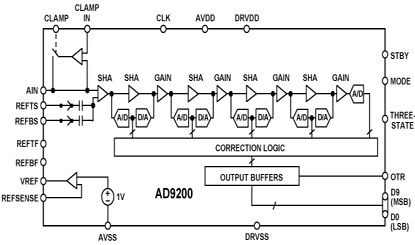

AD9200 功能框图 AD9200是一款单芯片、10位、20 MSPS模数转换器(ADC)，采用单电源供电，内置一个片内采样保持放大器和基准电压源。它采用多级差分流水线架构，数据速率达20 MSPS，在整个工作温度范围内保证无失码。AD9200的输入经过设计，使成像和通信系统的开发更加轻松。用户可以选择各种输入范围和偏移，并可通过单端或差分方式驱动输入。采样保持放大器(SHA)既适用于在连续通道中切换满量程电平的多路复用系统，也适合采用最高奈奎斯特速率及更高的频率对单通道输入进行采样。利用片上箝位电路（AD9200ARS、AD9200KST），可以使交流耦合输入信号偏移到预定电平。动态性能极为出色。AD9200具有一个片上可编程基准电压源。也可以选用外部基准电压源，以满足应用的直流精度与温度漂移要求。采用一个单时钟输入来控制所有内部转换周期。数字输出数据格式为标准二进制。超量程(OTR)信号表示溢出状况，可由最高有效位来确定是下溢还是上溢。AD9200采用2.7 V至5.5 V电源供电，非常适合高速便携式应用中的低功耗操作。额定温度范围为-40°C至+85°C工业温度范围和0°C至+70°C商用温度范围。

The AD9200 is a monolithic, single supply, 10-bit, 20 MSPS analog-to-digital converter with an on-chip sample-and-hold amplifier and voltage reference. The AD9200 uses a multistage differential pipeline architecture at 20 MSPS data rates and guarantees no missing codes over the full operating temperature range.

The input of the AD9200 has been designed to ease the development of both imaging and communications systems. The user can select a variety of input ranges and offsets and can drive the input either single-ended or differentially.The sample-and-hold (SHA) amplifier is equally suited for both multiplexed systems that switch full-scale voltage levels in successive channels and sampling single-channel inputs at frequencies up to and beyond the Nyquist rate. AC coupled input signals can be shifted to a predetermined level, with an onboard clamp circuit (AD9200ARS, AD9200KST). The dynamic performance is excellent.

The AD9200 has an onboard programmable reference. An external reference can also be chosen to suit the dc accuracy and temperature drift requirements of the application.A single clock input is used to control all internal conversion cycles. The digital output data is presented in straight binary output format. An out-of-range signal (OTR) indicates an overflow condition which can be used with the most significant bit to determine low or high overflow.The AD9200 can operate with supply range from 2.7 V to 5.5 V, ideally suiting it for low power operation in high speed portable applications.The AD9200 is specified over the industrial (-40°C to +85°C) and commercial (0°C to +70°C) temperature ranges.

AD9200 特点

与AD876引脚兼容
功耗：80 mW (3 V)
工作电压范围：2.7 V至5.5 V
微分非线性：0.5 LSB
省电（休眠）模式
三态输出
超量程指示
内置箝位功能（直流复位）
可调片内基准电压源
IF 欠采样至135 MHz

AD9200 技术指标

Resolution (Bits): 10bit
# Chan: 1
Sample Rate: 20MSPS
Interface: Par
Analog Input Type: Diff-Uni,SE-Uni,Usr-Defined Range/Offset
Ain Range: 1 V p-p,2 V p-p,Uni 1.0V,Uni 2.0V
ADC Architecture: Pipelined
Pkg Type: QFP,SOP

AD9200 芯片订购指南

产品型号	封装	引脚	温度范围	包装和数量	报价*(100-499)	报价*1000 pcs
AD9200ARS 产品状态: 量产	28 ld SSOP	28	工业	Tube, 47	$ 3.43	$ 2.92
AD9200ARSZ 产品状态: 量产	28 ld SSOP	28	工业	Tube, 47	$ 2.98	$ 2.53
AD9200JRS 产品状态: 停产	28 ld SSOP	28	商业	Tube, 47	-	-
AD9200JRSZ 产品状态: 量产	28 ld SSOP	28	商业	Tube, 47	$ 2.98	$ 2.53
