AD845: Precision, 16 MHz CBFET Op Amp
The AD848 and AD849 are high speed, low power monolithic operational amplifiers. The AD848 is internally compensated so that it is stable for closed loop gains of 5 or greater. The AD849 is fully decompensated and is stable at gains greater than 24. The AD848 and AD849 achieve their combination of fast ac and good dc performance by utilizing Analog Devices' junction isolated complementary bipolar (CB) process. This process enables these op amps to achieve their high speed while only requiring 4.8 mA of current from the power supplies.
The AD848 and AD849 are members of Analog Devices' family of high speed op amps. This family includes, among others, the AD847 which is unity gain stable, with a gain bandwidth of 50 MHz. For more demanding applications, the AD840, AD841 and AD842 offer even greater precision and greater output current drive.
The AD848 and AD849 have good dc performance. When operating with ±5 V supplies, they offer open loop gains of 13 V/mV (AD848 with a 500 Ohm load) and low input offset voltage of 1 mV maximum. Common-mode rejection is a minimum of 92 dB. Output voltage swing is ±3 V even into loads as low as 150 Ohm.
AD845 特点
- Replaces Hybrid Amplifiers in Many Applications
AC PERFORMANCE - Settles to 0.01% in 350 ns
- 100 V/us Slew Rate
- 12.8 MHz Min Unity Gain Bandwidth
- 1.75 MHz Full Power Bandwidth at 20 V p-p
DC PERFORMANCE - 0.25 mV Max Input Offset Voltage
- 5 uV/°C Max Offset Voltage Drift
- 0.5 nA Input Bias Current
- 250 V/mV Min Open-Loop Gain
- 4 uV p-p Max Voltage Noise, 0.1 Hz to 10 Hz
- 94 dB Min CMRR
- Available in Plastic Mini-DIP, Hermetic
CERDIP, and SOIC Packages. Also
available in Tape and Reel in
Accordance with EIA-481A Standard

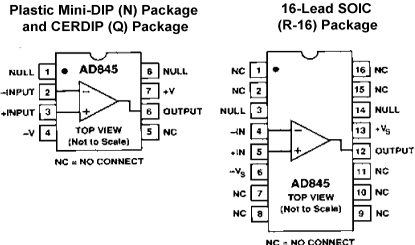

AD845 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-8964501PA | 量产 | 8 ld CerDIP | 8 | 军用 |
| AD845AQ | 量产 | 8 ld CerDIP | 8 | 工业 |
| AD845BQ | 量产 | 8 ld CerDIP | 8 | 工业 |
| AD845JN | 量产 | 8 ld PDIP | 8 | 商业 |
| AD845JNZ | 量产 | 8 ld PDIP | 8 | 商业 |
| AD845JR-16 | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD845JR-16-REEL | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD845JR-16-REEL7 | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD845JRZ-16 | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD845JRZ-16-REEL | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD845JRZ-16-REEL7 | 量产 | 16 ld SOIC - Wide | 16 | 商业 |
| AD845KN | 量产 | 8 ld PDIP | 8 | 商业 |
| AD845KNZ | 量产 | 8 ld PDIP | 8 | 商业 |
| AD845SQ | 量产 | 8 ld CerDIP | 8 | 军用 |
| AD845SQ/883B | 量产 | 8 ld CerDIP | 8 | 军用 |
