AD842: Wideband, High Output Current, Fast Settling Op Amp

The AD842 is a member of the Analog Devices family of wide bandwidth operational amplifiers. This family includes, among others, the AD840 which is stable at a gain of 10 or greater and the AD841 which is unity-gain stable. These devices are fabricated using Analog Devices' junction isolated complementary bipolar (CB) process. This process permits a combination of dc precision and wideband ac performance previously unobtainable in a monolithic op amp. In addition to its 80 MHz gain bandwidth, the AD842 offers extremely fast settling characteristics, typically settling to within 0.01% of final value in less than 100 ns for a 10 volt step.

The AD842 also offers a low quiescent current of 13 mA, a high output current drive capability (100 mA minimum), a low input voltage noise of 9 nV√Hz and a low input offset voltage (1 mV maximum).

The 375 V/us slew rate of the AD842, along with its 80 MHz gain bandwidth, ensures excellent performance in video and pulse amplifier applications. This amplifier is ideally suited for use in high frequency signal conditioning circuits and wide bandwidth active filters. The extremely rapid settling time of the AD842 makes this amplifier the preferred choice for data acquisition applications which require 12-bit accuracy. The AD842 is also appropriate for other applications such as high speed DAC and ADC buffer amplifiers and other wide bandwidth circuitry.

AD842 特点

• Gain Bandwidth Product: 80 MHz (Gain = 2)
• Fast Settling: 100 ns to 0.01% for a 10 V Step
• Slew Rate: 375 V/us
• Stable at Gains of 2 or Greater
• Full Power Bandwidth: 6.0 MHz for 20 V p-p
• Input Offset Voltage: 1 mV max
• Input Offset Drift: 14 uV/°C
• Input Voltage Noise: 9 nV/√Hz typ
• Open-Loop Gain: 90 V/mV into a 500 Ω Load
• Output Current: 100 mA min
• Quiescent Supply Current: 14 mA max

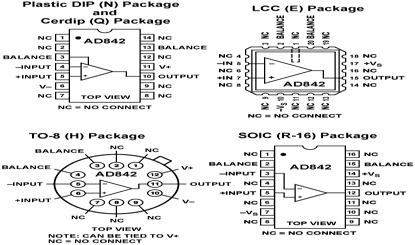

AD842 功能框图

AD842 芯片订购指南

产品型号	产品状态	封装	引脚	温度范围
5962-89642012A	量产	20 ld LCC	20	军用
5962-8964201CA	量产	14 ld CerDIP	14	军用
AD842JH	量产	12 ld Header	12	商业
AD842JN	量产	14 ld PDIP	14	商业
AD842JNZ	量产	14 ld PDIP	14	商业
AD842JQ	量产	14 ld CerDIP	14	商业
AD842JR-16	量产	16 ld SOIC - Wide	16	商业
AD842JR-16-REEL	量产	16 ld SOIC - Wide	16	商业
AD842JR-16-REEL7	量产	16 ld SOIC - Wide	16	商业
AD842JRZ-16	量产	16 ld SOIC - Wide	16	商业
AD842JRZ-16-REEL7	量产	16 ld SOIC - Wide	16	商业
AD842KH	量产	12 ld Header	12	商业
AD842KN	量产	14 ld PDIP	14	商业
AD842KNZ	量产	14 ld PDIP	14	商业
AD842KQ	量产	14 ld CerDIP	14	商业
AD842SE/883B	量产	20 ld LCC	20	军用
AD842SH	量产	12 ld Header	12	军用
AD842SQ	量产	14 ld CerDIP	14	军用
AD842SQ/883B	量产	14 ld CerDIP	14	军用
