AD8354-EVALZ: 1 MHz to 2.7 GHz RF Gain Block
The AD8354 is a broadband, fixed-gain, linear amplifier that operates at frequencies from 1 MHz up to 2.7 GHz. It is intended for use in a wide variety of wireless devices, including cellular, broadband, CATV, and LMDS/MMDS applications.
By taking advantage of ADI’s high performance, complementary Si bipolar process, these gain blocks provide excellent stability over process, temperature, and power supply. This amplifier is single-ended and internally matched to 50 Ω with a return loss of greater than 10 dB over the full operating frequency range.
The AD8354 provides linear output power of nearly 4.3 dBm with 20 dB of gain at 900 MHz when biased at 3 V and an external RF choke is connected between the power supply and the output pin. The dc supply current is 24 mA. At 900 MHz, the output third-order intercept (OIP3) is greater than 18 dBm; at 2.7 GHz, the OIP3 is 14 dBm.
The noise figure is 4.2 dB at 900 MHz. The reverse isolation (S12) is -33 dB at 900 MHz.
The AD8354 can also operate with a 5 V power supply; in which case, no external inductor is required. Under these conditions, the AD8354 delivers 4.88 dBm with 20 dB of gain at 900 MHz. The dc supply current is 26 mA. At 900 MHz, the OIP3 is greater than 19 dBm; at 2.7 GHz, the OIP3 is 15 dBm. The noise figure is 4.4 dB at 900 MHz. The reverse isolation (S12) is -33 dB.
The AD8354 is fabricated on ADI’s proprietary, high performance, 25 GHz, Si complementary, bipolar IC process. The AD8354 is available in a chip scale package that uses an exposed paddle for excellent thermal impedance and low impedance electrical connection to ground. It operates over a -40°C to +85°C temperature range, and an evaluation board is also available.
AD8354-EVALZ 特点
- Fixed gain of 20 dB
- Operational frequency of 1 MHz to 2.7 GHz
- Linear output power up to 4 dBm
- Input/output internally matched to 50 Ω
- Temperature and power supply stable
- Noise figure: 4.2 dB
- Power supply: 3 V or 5 V

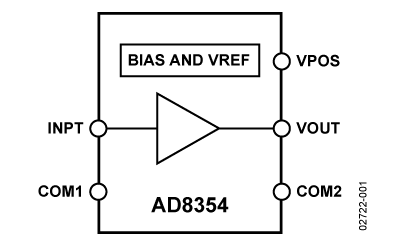

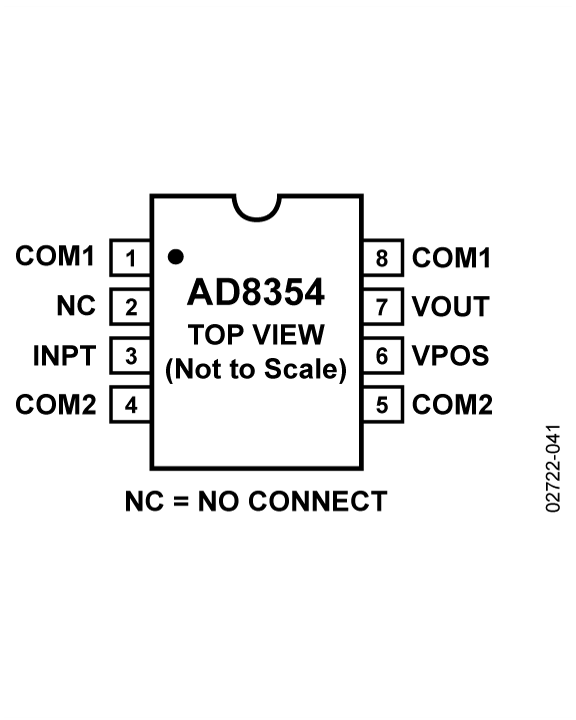

AD8354-EVALZ 功能框图
AD8354-EVALZ 技术指标
| Frequency Range (MHz) | 1 to 2700 | Supply Voltage (V) | +5V |
| Gain (dB) | 19.5dB | Supply Current | 25mA |
| Output IP3 (dBm) | 19.3 | Package | 8-Lead LFCSP |
| Output P1dB (dBm) | 4.8 (900 MHz) | 1 dB Comp Point (dBm) | 4.8 |
| Noise Figure (dB) | 4.4dB |
AD8354 订购指南
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD8354-EVALZ | 量产 | 评估板 | 工业 | |
| AD8354ACP-R2 | 量产 | 8 ld LFCSP (3x2x.75mm) | 8 | 工业 |
| AD8354ACP-REEL7 | 量产 | 8 ld LFCSP (3x2x.75mm) | 8 | 工业 |
| AD8354ACPZ-REEL7 | 量产 | 8 ld LFCSP (3x2x.75mm) | 8 | 工业 |
