AD8340: 700 MHz to 1000 MHz RF Vector Modulator
The AD8340 vector modulator performs arbitrary amplitude and phase modulation of an RF signal. Because the RF signal path is linear, the original modulation is preserved. This part can be used as a general-purpose RF modulator, a variable attenuator/phase shifter, or a remodulator. The amplitude can be controlled from a maximum of -2 dB to less than -32 dB, and the phase can be shifted continuously over the entire 360° range. For maximum gain, the AD8340 delivers an OP1dB of 11 dBm, an OIP3 of 24 dBm, and an output noise floor of -149 dBm/Hz, independent of phase. It operates over a frequency range of 700 MHz to 1.0 GHz.
The baseband inputs in Cartesian I and Q format control the amplitude and phase modulation imposed on the RF input signal. Both I and Q inputs are dc-coupled with a ±500 mV differential full-scale range. The maximum modulation band- width is 230 MHz, which can be reduced by adding external capacitors to limit the noise bandwidth on the control lines.
Both the RF inputs and outputs can be used differentially or single-ended and must be ac-coupled. The RF input and output impedances are nominally 50 Ω over the operating frequency range. The DSOP pin allows the output stage to be disabled quickly to protect subsequent stages from overdrive. The AD8340 operates off supply voltages from 4.75 V to 5.25 V while consuming approximately 130 mA.
The AD8340 is fabricated using the Analog Devices, Inc. proprietary, high performance 25 GHz SOI complementary bipolar IC process. It is available in a 24-lead RoHS-compliant LFCSP package and operates over a -40°C to +85°C temperature range. Evaluation boards are available.
产品应用领域 Applications
- RF PA linearization/RF predistortion
- Amplitude and phase modulation
- Variable attenuators and phase shifters
- CDMA2000, GSM/EDGE linear power amplifiers
- Smart antennas
AD8340 特点
- Cartesian amplitude and phase modulation
- 700 MHz to 1.0 GHz frequency range
- Continuous magnitude control of -2 dB to -32 dB
- Continuous phase control of 0° to 360°
- Output third-order intercept 24 dBm
- Output 1 dB compression point 11 dBm
- Output noise floor -149 dBm/Hz @ full gain
- Adjustable modulation bandwidth up to 230 MHz
- Fast output power disable
- 4.75 V to 5.25 V single-supply voltage

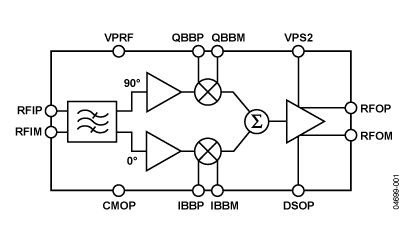

AD8340 功能框图
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD8340-EVAL | 量产 | 评估板 | - | 工业 |
| AD8340ACPZ-REEL7 | 量产 | 24 ld LFCSP (4x4mm w/2.10mm EP) | 24 | 工业 |
| AD8340ACPZ-WP | 量产 | 24 ld LFCSP (4x4mm w/2.10mm EP) | 24 | 工业 |
