AD8236: 仪表放大器
The AD8236 is the lowest power instrumentation amplifier in the industry. It has rail-to-rail outputs and can operate on voltages as low as 1.8 V. Its 40 μA maximum supply current makes it an excellent choice in battery-powered applications.
The AD8236’s high input impedance, low input bias current of 1 pA, high CMRR of 110 dB (G = 100), small size, and low power offer tremendous value. It has a wider common-mode voltage range than typical three-op-amp instrumentation amplifiers, making this a great solution for applications that operate on a single 1.8 V or 3 V supply. An innovative input stage allows for a wide rail-to-rail input voltage range without the crossover distortion common in other designs.
The AD8236 is available in an 8-lead MSOP and is specified over the industrial temperature range of -40°C to +125°C
产品应用领域 Applications
- Medical instrumentation
- Low-side current sense
- Portable devices
AD8236 特点
- Low power: 40 μA supply current (maximum)
- Low input currents
1 pA input bias current
0.5 pA input offset current - High CMRR: 110 dB CMRR, G = 100
- Space-saving MSOP
- Zero input crossover distortion
- Rail-to-rail input and output
- Gain set with single resistor
- Operates from 1.8 V to 5.5 V

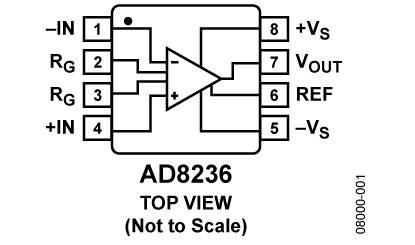

AD8236 功能框图
AD8236 功能框图
AD8236 技术指标
| Single/Dual Supply | Single | Vnoise RTI 1-10 Hz uVp-p | 4uV p-p |
| Gain Setting Method | Resistor | Temperature Range | -40 to +125 |
| Gain Range (min to max) | 100 | Supply Current | 30uA |
| Bandwidth G=10 (kHz typ) | 9kHz | Package | MSOP |
| CMRR (dB) | 110dB |
AD8236 订购指南
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| AD8236ARMZ | 量产 | 8 ld MSOP | 8 | 工业 |
| AD8236ARMZ-R7 | 量产 | 8 ld MSOP | 8 | 工业 |
| AD8236ARMZ-RL | 量产 | 8 ld MSOP | 8 | 工业 |
