AD813: Single Supply, Low Power Triple Video Amplifier
The AD813 is a low power, single supply triple video amplifier. Each of the three current feedback amplifiers has 50 mA of output current, and is optimized for driving one back terminated video load (150 W). The AD813 features gain flatness of 0.1 dB to 50 MHz while offering differential gain and phase error of 0.03% and 0.06°. This makes the AD813 ideal for broadcast and consumer video electronics.
The AD813 offers low power of 5.5 mA per amplifier max and runs on a single +3 V power supply. The outputs of each amplifier swing to within one volt of either supply rail to easily accommodate video signals. While operating on a single +5 V supply the AD813 still achieves 0.1 dB flatness to 20 MHz and 0.05% & 0.05° of differential gain and phase performance. All this is offered in a small 14-pin plastic DIP or SOIC package. These features make this triple amplifier ideal for portable and battery powered applications where size and power are critical.
The outstanding bandwidth of 125 MHz along with 500 V/us of slew rate make the AD813 useful in many general purpose, high speed applications where a single +3 V or dual power supplies up to ±15 V are needed. Furthermore the AD813 contains a high speed disable function for each amplifier in order to power down the amplifier or high impedance the output. This can then be used in video multiplexing applications. The AD813 is available in the industrial temperature range of -40°C to +85°C in plastic DIP and SOIC packages as well as chips.
AD813 特点
- Low Cost
- Three Video Amplifiers in One Package
- Optimized for Driving Cables in Video Systems
- Excellent Video Specifications (RL = 150 W)
Gain Flatness 0.1 dB to 50 MHz
0.03% Differential Gain Error
0.06° Differential Phase Error - Low Power
Operates on Single +3 V to ±15 V Power Supplies
5.5 mA/Amplifier Max Power Supply Current - High Speed
125 MHz Unity Gain Bandwidth (-3 dB)
500 V/us Slew Rate - High Speed Disable Function per Channel
Turn-Off Time 80 ns - Easy to Use
50 mA Output Current
Output Swing to 1 V of Rails

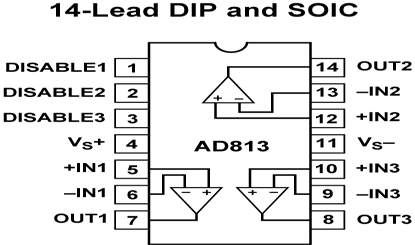

AD813 功能框图
AD813 技术指标
| -3dB Bandwidth | 100MHz | Vcc-Vee Supply (V) | 2.4 to 36 |
| Slew Rate | 250V/us | Iq per Amplifier | 5.5mA |
| Vos | 2mV | # OpAmps per Pkg | 3 |
| Ib | 500nA | Operating Temp Range | -55 to +125 |
| Input Noise (nV/rtHz) | 3.5nV/rtHz | Packages | DIP,LCC,SOIC |
AD813 订购指南
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| 5962-9559601M2A | 量产 | 20 ld LCC | 20 | 军用 |
| AD813AN | 量产 | 14 ld PDIP | 14 | 工业 |
| AD813ANZ | 量产 | 14 ld PDIP | 14 | 工业 |
| AD813AR-14 | 量产 | 14 ld SOIC | 14 | 工业 |
| AD813AR-14-REEL | 量产 | 14 ld SOIC | 14 | 工业 |
| AD813AR-14-REEL7 | 量产 | 14 ld SOIC | 14 | 工业 |
| AD813ARZ-14 | 量产 | 14 ld SOIC | 14 | 工业 |
| AD813ARZ-14-REEL | 量产 | 14 ld SOIC | 14 | 工业 |
| AD813ARZ-14-REEL7 | 量产 | 14 ld SOIC | 14 | 工业 |
