AD811: 运算放大器
The AD811 is a wideband current-feedback operational amplifier, optimized for broadcast quality video systems. The -3 dB bandwidth of 120 MHz at a gain of +2 and differential gain and phase of 0.01% and 0.01° (RL = 150 W) make the AD811 an excellent choice for all video systems. The AD811 is designed to meet a stringent 0.1 dB gain flatness specification to a bandwidth of 35 MHz (G = +2) in addition to the low differential gain and phase errors. This performance is achieved whether driving one or two back terminated 75 W cables, with a low power supply current of 16.5 mA. Furthermore, the AD811 is specified over a power supply range of ±4.5 V to ±18 V.
The AD811 is also excellent for pulsed applications where transient response is crititcal. It can achieve a maximum slew rate of greater than 2500 V/us with a settling time of less than 25 ns to 0.1% on a 2 volt step and 65 ns to 0.01% on a 10 volt step.
The AD811 is ideal as an ADC or DAC buffer in data acquisition systems due to its low distortion up to 10 MHz and its wide unity gain bandwidth. Because the AD811 is a current feedback amplifier, this bandwidth can be maintained over a wide range of gains. The AD811 also offers low voltage and current noise of 1.9nV/√Hz and 20 pA/√Hz, respectively, and excellent dc accuracy for wide dynamic range applications.
AD811 特点
- High Speed
140 MHz Bandwidth (3 dB, G = +1)
120 MHz Bandwidth (3 dB, G = +2)
35 MHz Bandwidth (0.1 dB, G = + 2)
2500 V/us Slew Rate
25 ns Settling Time to 0.1% (For a 2 V Step)
65 ns Settling Time to 0.01% (For a 10 V Step) - Excellent DC Precision
3 mV max Input Offset Voltage - Low Distortion: THD = -74 dB @ 10 MHz
- Excellent Video Performance (RL = 150 O)
0.10% Differential Gain, 0.01° Differential Phase
Voltage Noise of 1.9 nVvHz - Flexible Operation
Specified for ±5 V and ±15 V Operation
±2.3 V Output Swing into a 75 O Load (VS = ±5 V)

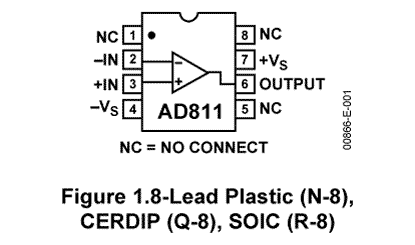

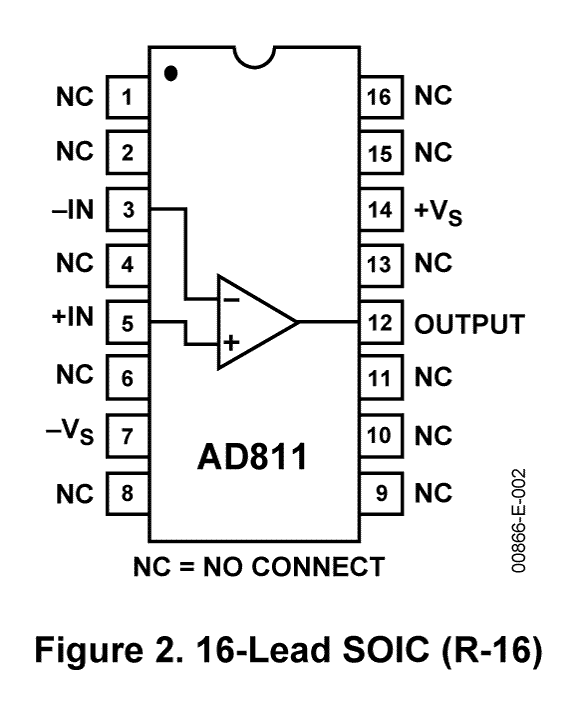

AD811 功能框图
AD811 技术指标
| -3dB Bandwidth | 140MHz | Vcc-Vee Supply (V) | 9 to 36 |
| Slew Rate | 2.5kV/us | Iq per Amplifier | 16mA |
| Vos | 500uV | # OpAmps per Pkg | 1 |
| Ib | 2uA | Operating Temp Range | -55 to +125 |
| Input Noise (nV/rtHz) | 1.9nV/rtHz | Packages | DIP,LCC,SOIC |
AD811 订购指南
| 产品型号 | 产品状态 | 封装 | 引脚 |
|---|---|---|---|
| 5962-9313101M2A | 量产 | 20 ld LCC | 20 |
| 5962-9313101MPA | 量产 | 8 ld CerDIP | 8 |
| AD811AN | 量产 | 8 ld PDIP | 8 |
| AD811ANZ | 量产 | 8 ld PDIP | 8 |
| AD811AR-16 | 量产 | 16 ld SOIC - Wide | 16 |
| AD811AR-16-REEL | 量产 | 16 ld SOIC - Wide | 16 |
| AD811AR-16-REEL7 | 量产 | 16 ld SOIC - Wide | 16 |
| AD811AR-20 | 量产 | 20 ld SOIC - Wide | 20 |
| AD811AR-20-REEL | 量产 | 20 ld SOIC - Wide | 20 |
| AD811ARZ-16 | 量产 | 16 ld SOIC - Wide | 16 |
| AD811ARZ-16-REEL | 量产 | 16 ld SOIC - Wide | 16 |
| AD811ARZ-16-REEL7 | 量产 | 16 ld SOIC - Wide | 16 |
| AD811ARZ-20 | 量产 | 20 ld SOIC - Wide | 20 |
| AD811JR | 量产 | 8 ld SOIC | 8 |
| AD811JR-REEL | 量产 | 8 ld SOIC | 8 |
| AD811JR-REEL7 | 量产 | 8 ld SOIC | 8 |
| AD811JRZ | 量产 | 8 ld SOIC | 8 |
| AD811JRZ-REEL | 量产 | 8 ld SOIC | 8 |
| AD811JRZ-REEL7 | 量产 | 8 ld SOIC | 8 |
| AD811SE/883B | 量产 | 20 ld LCC | 20 |
| AD811SQ/883B | 量产 | 8 ld CerDIP | 8 |
EVAL-PRAOPAMP: Universal Precision Op Amp Evaluation Board
| 产品型号 | 产品状态 | 封装 | 引脚 | 温度范围 |
|---|---|---|---|---|
| EVAL-ADOPAMP-1CPEZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-1CPNZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-1CPZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-1KSZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-1REZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-1RINZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-1RNIZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-1RTZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-1RZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-2CPZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-2RJZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-2RMZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-2RZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-3CPZ | 量产 | 评估板 | 商业 | |
| EVAL-ADOPAMP-3RUZ | 量产 | 评估板 | 商业 |
